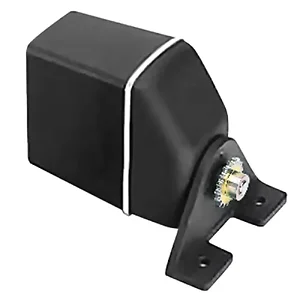

M81136 - Raymarine Type 2 Rotary Drive 12V System

Type 2 Rotary Drive 12V Autopilot System

This Rotary Drive is specifically designed for both power and sailboat systems, allowing for seamless control from the helm through a chain and sprocket mechanism (ideal for cable and rod steering systems). The innovative design of the Raymarine rotary drive ensures smooth and powerful autopilot-controlled steering, all while maintaining quiet operation.

For optimal performance, optional drive sprockets and modifications to the steering chain may be necessary.

Specifications:

• Maximum Boat Displacement: 20,000 kg
• Peak Output Torque: 34 nm
• Maximum Shaft Speed: 33 rpm
• Recommended Hard-Over Time (no load): 10 seconds
• Power Consumption: 60-84w
• Compatible Corepack: ACU-400

The Raymarine Type 2 Rotary Drive 12V System, part number M81136, is an autopilot component designed for integration into both power and sailboat steering systems. It facilitates automated steering control via a chain and sprocket mechanism, making it suitable for vessels utilizing cable and rod steering. This drive unit provides a peak output torque of 34 nm and a maximum shaft speed of 33 rpm, with a recommended hard-over time of 10 seconds under no-load conditions. It is engineered to deliver smooth and quiet operation, consuming between 60-84W. This system is intended for boats with a maximum displacement of 20,000 kg and requires an ACU-400 Corepack for optimal performance. Buyers should note that optional drive sprockets and steering chain modifications may be necessary for installation.
