M5200PS1 - Hubbell 200A Male Plug 600V 4 Pole 5 Wire

Hubbell was the first to offer a marine-ized UL listed 100 AMP Ship-To-Shore system and now, they are the first to offer a marine-ized, UL listed 200 AMP ship-to-shore system.

Hubbell's 200 AMP Ship-To-Shore System is:

• NEMA 4X rated for superior water resistance.
• Made of copper-free aluminum with an electrostatically applied epoxy/polyester finish.
• Accepts a cord range of #1 AWG ? 250 MCM.
• Pin and sleeves are made of nickel-plated Tellurium copper for superior corrosion and heat resistance.

And fully interchangeable with UL 1686 configured and listed devices such as Crouse-Hinds® Arktite® or Appleton® Powertite® (when installed in
accordance with instructions furnished with device)

M5200BS1R
Gray metallic watertight shore power inlet with wingnut-secured lid for water tightness when not in use

M5200CS1R
Gray/yellow metallic watertight connector body with locking ring to make inlet/connector body interface watertight. Cord range is #1 AWG-250 MCM (0.653 max. conductor diameter)

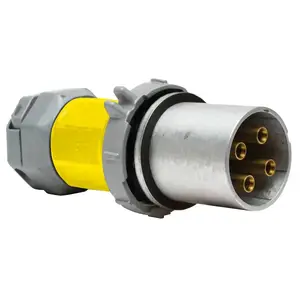

M5200PS1
Gray/yellow metallic watertight plug with locking ring to make plug/receptacle interface watertight. Cord grip range is #1 AWG-250 MCM (0.653 max. conductor diameter)

M5200RS1
Gray metallic, watertight dockside receptacle with wing nut-secured lid for water tightness when not in use.

M5200CS1
Gray/yellow metallic watertight connector body with wing nut-secured lid for water tightness when not in use. For making plug/connector body interface on extension cords or adapter.

MB2003W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of  4 positions, 2.0 in. N.P.T. hub.

MB2004W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of  4 positions, 2.5 in. N.P.T. hub.

The Hubbell M5200PS1 is a 200A male plug designed for high-current electrical connections, specifically within marine ship-to-shore power systems. This 4-pole, 5-wire plug is rated for 600V operation. Constructed from copper-free aluminum with an epoxy/polyester finish, it features nickel-plated Tellurium copper pins and sleeves for corrosion and heat resistance. The M5200PS1 is NEMA 4X rated, providing superior water resistance suitable for demanding outdoor or marine environments. It accepts a cord range from #1 AWG to 250 MCM and includes a locking ring to ensure a watertight interface when connected to a compatible receptacle. This plug is suitable for IT professionals and facility managers requiring robust, high-amperage power connections in environments where water resistance and durability are critical.
