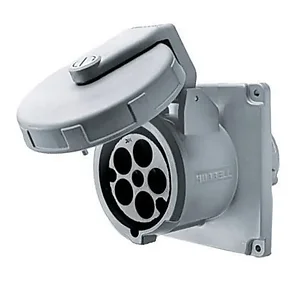

Hubbell M5100R7 5-Wire 100 Amp 480 Volt Receptacle
Model: M5100R7Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Receptacle, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| Number Of Poles | 4 |
| Amperage Rating | 100 |
| Connectivity | Pressure Screw Terminals |
| Current Rating | 100 |
| Phase | Three Phase |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| Number Of Wires | 5 |
| Wire Size | #3 AWG to #1/0 AWG |
The Hubbell M5100R7 is a 100 Amp, 480 Volt, 5-wire receptacle designed for industrial and commercial electrical installations. This heavy-duty, IEC pin and sleeve device is suitable for applications requiring a robust and reliable connection for three-phase power. Its insulated non-metallic housing and self-closing gasketed cover provide protection in demanding environments, including marine-grade applications. The receptacle features a 4-pole, 5-wire grounding configuration, supporting 277/480V AC Wye systems. Color-coded housings facilitate easy identification during installation and maintenance. Connectivity is managed via pressure screw terminals, accommodating wire sizes from #3 AWG to #1/0 AWG. This product addresses the need for secure, high-amperage electrical connections in facilities utilizing 480V three-phase power.
This receptacle has an amperage rating of 100A and is rated for three-phase Y 277 VAC and three-phase Y 480 VAC systems.
It supports a 4-pole, 5-wire grounding configuration, suitable for three-phase Wye 277/480V AC applications.
The pressure screw terminals are designed to accommodate wire sizes from #3 AWG to #1/0 AWG.
The receptacle features an insulated non-metallic housing with a self-closing gasketed cover, and color-coded housings for easy identification. It is also rated as marine grade.
