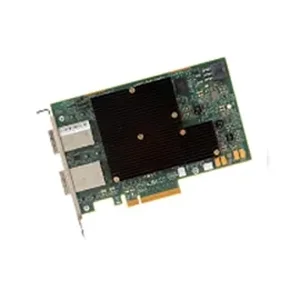

Broadcom LSI00342 LSI Logic 9300-16e 16-Port 12Gb/s SAS/SATA PCIe HBA Card

Out of Stock
Condition: New

$918.30  $1,239.71
 Free Shipping for this Item

Product Overview

The LSI Logic 9300-16e is a high-performance 16-port PCI-Express host bus adapter designed for connecting storage devices using SAS and SATA interfaces. It supports a robust data transfer rate of up to 12Gb/s per port and is ideal for integrating with external JBOD and RAID solutions.

This controller enables connectivity for a large number of SATA and SAS devices with ease, making it suitable for data-intensive applications. The card is built to deliver maximum bandwidth and reliability for your server storage needs, backed with a 3-year warranty.

Technical Specifications

  • Solution Provided: 16-port SAS HBA for maximum connectivity and performance.
  • SAS Bandwidth: Half Duplex (x4 wide bus) 4800 MB/s.
  • Port Configurations: 16 x1 ports, 4 x4 wide ports, and 2 x8 wide ports.
  • Connectors: Four (x4) mini-SAS HD external connectors (SFF8644).
  • Brackets: Full height.
  • Cable Support: Supports both passive copper and active optical cables.
  • Device Support: Supports 1024 Non-RAID SATA/SATA devices per controller.
  • Host Bus: Compliant with x8 lane PCI Express 3.0.
  • Storage Connectivity Data Transfer Rates: 16 ports at 12Gb/s SAS 3.0 compliant.
  • PCI Data Burst Transfer Rates: Half Duplex x8, PCIe, 8000 MB/s.
  • I/O Controller: Two LSISAS3008 with Fusion MPT 2.5 technology.
  • PCI Power (Nominal): 28.6W.
  • MTBF: Over 1,500,000 hours.
  • Regulatory Certifications: Complies with various certifications including EMC Class B, EN60950, RoHS, and WEEE.
  • OS Support: Compatible with Microsoft Windows, Linux distributions (SuSE, Red Hat), Solaris, VMware, and FreeBSD.
  • Dimensions: 6 x 10.25 x 1.625 inches.
  • Weight: 1.5 lbs.
  • Warranty: 3 years.

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Broadcom
  • LSI00342
  • 830343007066
  • New
  • 2 lbs
  • 10 X 7 X 4
  • Mar 07, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Broadcom • Part #: LSI00342 • UPC: 830343007066 • Category: Disk Controllers/RAID Cards
