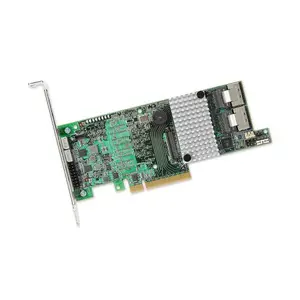

Broadcom LSI00330(MGRD SAS 9271-8I SGL) LSI Logic Controller Card L5-25413-18/04 MegaRAID SAS 9271-8i 8Port 6Gb/s PCI Ex

Specifications

• Mfr Part Number: LSI00330(MGRD SAS 9271-8I SGL)
• Features:
  • Eight internal SATA+SAS ports
  • 800MHz PowerPC
  • Optional CacheVault Module (LSICVM01)
  • Optional battery backup unit (LSIiBBU09 remote mount)
  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • Designed for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
  • Designed for IOPs performance and advanced software options help users realize full benefits of SSD deployments
  • CacheVault technology option for greener, lower total cost cache protection
  • Support for CacheCade Pro 2.0 read/write caching software to help accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache
  • Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
  • Helps to meet high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
• Connectors: 2x Mini-SAS SFF8087 internal connectors (side mount)
• Device Support: Up to 128 SAS and/or SATA devices
• Host Bus Type: PCI-Express 3.0 x8 compliant
• Data Transfer Rates: Up to 6Gb/s per port
• I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
• Cache Memory: 1GB 1333MHz DDR3 SDRAM
• Cache Protection:
  • MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297)
  • MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
• RAID Data Protection Features:
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • SSD Support with SSD Guard
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible Hot Spare support
    • Automatic rebuild
    • Enclosure affinity
    • Emergency SATA hot spare for SAS arrays
  • Enclosure management
    • SES (inband)
    • SGPIO (sideband)
• Operating Voltage: +3.3V, +12V
• MTBF (Calculated): 1,031,514 hours
• RAID Management (MegaRAID Management Suite): MegaRAID Storage Manager; MegaCLI (command-line interface); WebBIOS
• OS Support: Microsoft Windows Vista/ 2008/ Server 2003/ 2000/ XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more
• Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
• Dimensions: MD2 - Low Profile (6.600 x 2.536 inch)
