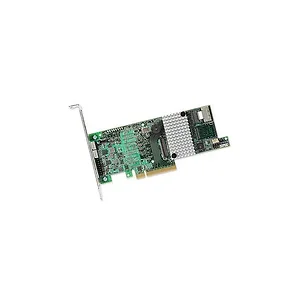

Broadcom LSI00328/L5-25413-17 / 9271-4I SGL LSI MegaRAID SAS 9271-4i 4-port 6Gb/s SATA+SAS PCI-Express 3.0 Low Profile R

Specifications

• Mfr Part Number: LSI00328 (MGRD SAS 9271-4I SGL)
• Features:
  • Four internal SATA+SAS ports
  • LSISAS2208 Dual Core ROC - 800MHz PowerPC
  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • Designed for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
  • Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
    CacheVault technology option for greener, lower total cost cache protection
  • Support for CacheCade Pro 2.0 read/write caching software to help accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache
  • Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
  • Helps to meet high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
• Connectors: 1x Mini-SAS SFF8087 Internal Connector (side mount)
• Device Support: Up to 128 SAS and/or SATA devices
• Host Bus Type: PCI-Express 3.0 x8 compliant
• Data Transfer Rates: Up to 6Gb/s per port
• I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
• Cache Memory: 1GB 1333MHz DDRIII SDRAM
• RAID Data Protection Features:
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load balancing
  • Configure stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • SSD Support with SSD Guard
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible Hot Spare support
    • Automatic rebuild
    • Enclosure affinity
    • Emergency SATA hot spare for SAS arrays
  • Enclosure management
    • SES (inband)
    • SGPIO (sideband)
• Operating Voltage: +3.3V, +12V
• MTBF: 1,031,514 hours
• RAID Management (MegaRAID Management Suite): MegaRAID Storage Manager; MegaCLI (command-line interface); WebBIOS
• OS Support: Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more
• Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
• Form Factor: MD2 Low Profile; 6.600 x 2.536 inch
• Dimensions: 6.600 x 2.536 inch
