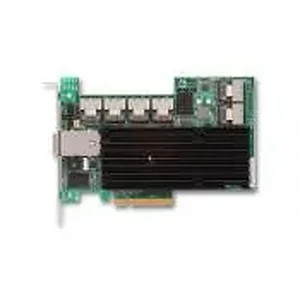

3ware LSI00251 (9750-24I4E) SINGLE LSI 9750 24I4E 24 Port Internal and 4 Port External 6Gb s PCI Express SATA SAS RAID C

Specifications

• Mfr Part Number: LSI00251 (9750-24I4E) SINGLE
• Solution Provided: Twenty-four port internal / four port external SATA+SAS solution for high-density servers and workstations using up to 127 devices with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
• Connectors: 6x Mini-SAS SFF8087 Internal Connectors; 1x Mini-SAS SFF8088 External Connector
• Device Support: Up to 127 SATA and/or SAS devices including hard drives and SSDs
• Host Bus Type: 8x PCI Express 2.0
• Data Transfer Rates: Up to 6 Gb/s per port
• I/O Processor/SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
• Cache Memory: 512MB DDR2-800MHz SDRAM
• Key RAID Data Protection Features:
  • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
  • Rapid RAID Recovery
  • StreamFusion+
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during array rebuild or reconstruction
  • Single controller Multipathing
  • Load Balancing
  • Variable stripe size support
  • Fast initialization for quick array setup
  • Background Task Activity Policies
  • Multiple logical unit sizes and RAID levels on one card
  • Bootable array support for greater fault tolerance of your OS
  • SMTP support for email notification
  • SNMP support
  • Emergency Flash Recovery protects against failed firmware upgrade
  • Up to 32 active units support
  • Up to 32 drives per unit support
  • Support for greater than 2TB volumes
  • S.M.A.R.T support
  • Staggered drive spin-up support
  • Drive insertion and removal notification
  • Global Hot Spare - Automatic rebuild
  • Enclosure management for SES 2.0 via I2C or in-band signaling
  • Optional Battery Backup with StorSave BBU (Remote mount only)
• RAID Management: 3ware Disk Manager 2 (3DM 2); Command Line Utility (CLI); 3ware BIOS Manager (3BM); SNMP support
• Operating Voltage: 3.3 V and 12V
• Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
• Operating System Support: Windows Vista, Windows 7, Windows Server 2003/2008, Red Hat Linux, SuSE Linux, Fedora Core Linux, FreeBSD, Mac OS X, VMware ESXTM and ESXTMi, OpenSolarisTM, and more
• Form Factor: Full height
• Dimension: 6.600 x 4.376 inch
• Package Content: 3ware SAS 9750-24i4e, LP bracket, Driver & Documentation CD
