SKU: AZTEKXM0GV |  Mfg. Part: LSI00215 (9750-4I KIT)  | UPC: 830343001521  |
 1 Reviews  |     Share Make an offer

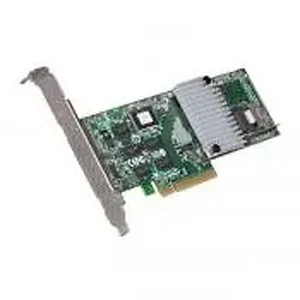

LSI00215 (9750-4I KIT) - 3ware LSI 3Ware 9750 4I 4 Port 6G s PCI Express SAS RAID Controller Kit

Special Order
Ships in 1-2 weeks
Condition: New

$518.66  $700.19
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

LSI00215 (9750-4I KIT) - 3ware LSI 3Ware 9750 4I 4 Port 6G s PCI Express SAS RAID Controller Kit

Technical Specifications

Specifications
  • Mfr Part Number: LSI00215 (9750-4I KIT)
  • Features:
    • Four internal 6Gb/s SATA+SAS ports
    • One Mini-SAS internal connector (SFF-8087)
    • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
    • LSISAS2108 6Gb/s RAID-on-Chip - 800MHz PowerPC
    • 512MB 800MHz DDRII cache memory
    • Optional battery backup module with StorSave BBU
    • Support for upto 96 SATA or SAS physical devices
  • Solution Provided: Four-port internal SATA+SAS solution for high-density servers and workstations using up to 96 drives with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
  • Connectors: 1x Mini-SAS SFF-8087 Internal connector
  • Device Support: Upto 96 SATA and/or SAS hard drives and SSDs
  • Host Bus Type: PCI Express 2.0 x 8
  • Data Transfer Rates: Upto 6Gb/s per port
  • I/O Processor/SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
  • Cache Memory: 512MB DDR2- 800MHz SDRAM
  • Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that directly connects to the controller
  • Key RAID Data Protection Features:
    • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
    • Rapid RAID Recovery
    • StreamFusion+
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during array rebuild or reconstruction
    • Single controller Multipathing (failover)
    • Load Balancing
    • Variable stripe size support
    • Fast initialization for quick array setup
    • Background Task Activity Policies
    • Multiple logical unit sizes and RAID levels on one card
    • Bootable array support for greater fault tolerance of your OS
    • SMTP support for email notification
    • SNMP support
    • Emergency Flash Recovery protects against failed firmware upgrade
    • Up to 32 active units support
    • Up to 32 drives per unit support
    • Support for greater than 2TB volumes
    • S.M.A.R.T support
    • Staggered drive spin-up support
    • Drive insertion and removal notification
    • Global Hot Spare - Automatic rebuild
    • Enclosure management for SES 2.0 via I2C or in-band signaling
    • Optional Battery Backup with StorSave BBU
  • RAID Management: 3ware Disk Manager 2 (3DM 2); Command Line Utility (CLI); 3ware BIOS Manager (3BM); SNMP support
  • Power Requirements: 3.3 V
  • Operating System Support: Windows Vista, Windows 7, Windows Server 2003/2008, Red Hat Linux, SuSE Linux, Fedora Core Linux, FreeBSD
  • Form Factor: Low-profile
  • Dimension: 6.6 x 2.536 inch

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • 3Ware
  • LSI00215 (9750-4I KIT)
  • 830343001521
  • New
  • 1.4 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: 3ware • Part #: LSI00215 (9750-4I KIT) • UPC: 830343001521 • Category: Disk Controllers/RAID Cards

LSI00215 (9750-4I KIT) - 3ware LSI 3Ware 9750 4I 4 Port 6G s PCI Express SAS RAID Controller Kit
