SKU: AI7F82V5SY |  Mfg. Part: LSI00214 (9750-8I SGL)  | UPC: 830343001514  |
 1 Reviews  |     Share Make an offer

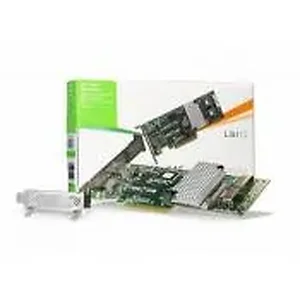

3ware LSI00214 (9750-8I SGL) LSI LSI00214 9750 8I SGL 8 Internal Ports PCI E Low Profile SATA SAS RAID Controller

Out of Stock
Condition: New

$682.16  $920.92
 Free Shipping for this Item

Product Overview

3ware LSI00214 (9750-8I SGL) LSI LSI00214 9750 8I SGL 8 Internal Ports PCI E Low Profile SATA SAS RAID Controller

Technical Specifications

Specifications
  • Mfr Part Number: LSI00214 (9750-8I SGL)
  • Features:
    • Eight internal 6Gb/s SATA/SAS ports
    • Two Mini-SAS internal connectors(SFF8087)
    • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
    • LSISAS2108 6Gb/s RAID-on-Chip � 800MHz PowerPC
    • 512MB 800MHz DDRII cache memory
    • Optional battery backup module with StorSave BBU
    • Support for upto 96 SATA or SAS physical devices
    • PCI Express 2.0 provides faster signaling for high- bandwidth applications
    • Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
    • StreamFusion+ improves multistream read and write performance
  • Port Count: 8x Internal SATA/SAS ports
  • Drive Interface: SAS / SATA
  • Connectors: 2x mini-SAS SFF-8087 connectors
  • Device Support: Upto 96 SATA and/or SAS hard drives and SSDs
  • Host Interface: PCI-Express 2.0 x8
  • Data Transfer Rate: Upto 6Gb/s per port
  • I/O Processor/SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
  • RAID Levels: 0, 1, 5, 6, 10, 50, Single Disk
  • Onboard Memory: 512MB DDR2-800
  • Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that directly connects to the controller
  • Key RAID Data Protection:
    • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
    • Rapid RAID Recovery
    • StreamFusion+
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during array rebuild or reconstruction
    • Single controller Multipathing (failover)
    • Load Balancing
    • Variable stripe size support
    • Fast initialization for quick array setup
    • Background Task Activity Policies
    • Bootable array support for greater fault tolerance of your OS
    • SMTP support for email notification
    • SNMP support
    • Emergency Flash Recovery protects against failed firmware upgrade
    • Upto 32 active units support
    • Upto 32 drives per unit support
    • Support for greater than 2TB volumes
    • S.M.A.R.T support
    • Staggered drive spin-up support
    • Drive insertion and removal notification
    • Global Hot Spare � Automatic rebuild; Enclosure management for SES 2.0 via I2C or in-band signaling
    • Optional Battery Backup with StorSave BBU
  • Operating Voltage: +3.3V
  • Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
  • Operating System Support: Microsoft Windows Vista, Windows 7, Windows Server 2003/2008, Red Hat Linux, SuSE Linux, Fedora Core Linux, FreeBSD, and more
  • Form Factor: Low Profile
  • Dimensions (LxH): 6.6 x 2.536 inch

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • 3Ware
  • LSI00214 (9750-8I SGL)
  • 830343001514
  • New
  • 1.4 lbs
  • 11 X 2 X 7
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: 3ware • Part #: LSI00214 (9750-8I SGL) • UPC: 830343001514 • Category: Disk Controllers/RAID Cards

3ware LSI00214 (9750-8I SGL) LSI LSI00214 9750 8I SGL 8 Internal Ports PCI E Low Profile SATA SAS RAID Controller
