SKU: AZTEKUUU7E |  Mfg. Part: LSI00213 (9750-8I KIT)  | UPC: 830343001507  |
 1 Reviews  |     Share Make an offer

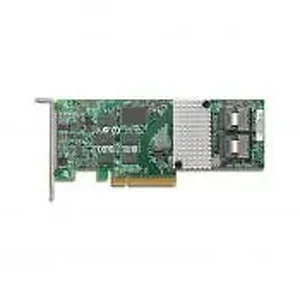

3ware LSI00213 (9750-8I KIT) 8 PORT INT 6GB S SATASAS PCIE 20 512MB IN THE BOX SAS 9750 8I T

Out of Stock
Condition: New

$755.74  $1,020.25
 Free Shipping for this Item

Product Overview

3ware LSI00213 (9750-8I KIT) 8 PORT INT 6GB S SATASAS PCIE 20 512MB IN THE BOX SAS 9750 8I T

Technical Specifications

Specifications
  • Mfr Part Number: LSI00213 (9750-8I KIT)
  • Features:
    • Eight internal 6Gb/s SATA+SAS ports
    • Two Mini-SAS internal connectors (SFF-8087)
    • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
    • LSISAS2108 6Gb/s RAID-on-Chip - 800MHz PowerPC
    • 512MB 800MHz DDRII cache memory
    • Optional battery backup module with StorSave BBU
    • Support for up to 127 SATA or SAS physical devices
    • PCI Express 2.0 provides faster signaling for high- bandwidth applications
    • Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
    • StreamFusion+ improves multi-stream read and write performance
  • Solution Provided: Eight-port internal SATA+SAS solution for high-density servers and workstations using up to 127 devices with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
  • Connectors: 2x Mini-SAS SFF-8087 Internal connector
  • Device Support: Up to 127 SATA and/or SAS devices
  • Host Bus Type: PCI Express 2.0 x 8
  • Data Transfer Rates: Upto 6Gb/s per port
  • I/O Processor/SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
  • Cache Memory: 512MB DDR2-800MHz SDRAM
  • Key RAID Data Protection Features:
    • RAID levels 0, 1, 5, 6, 10, 50 and Single Disk
    • Rapid RAID Recovery
    • StreamFusion+
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during array rebuild or reconstruction
    • Single controller Multipathing
    • Load Balancing
    • Variable stripe size support
    • Fast initialization for quick array setup
    • Background Task Activity Policies
    • Multiple logical unit sizes and RAID levels on one card
    • Bootable array support for greater fault tolerance of your OS
    • SMTP support for email notification
    • SNMP support
    • Emergency Flash Recovery protects against failed firmware upgrade
    • Up to 32 active units support
    • Up to 32 drives per unit support
    • Support for greater than 2TB volumes
    • S.M.A.R.T support
    • Staggered drive spin-up support
    • Drive insertion and removal notification
    • Global Hot Spare - Automatic rebuild
    • Enclosure management for SES 2.0 via I2C or in-band signaling
    • Optional Battery Backup with StorSave BBU
  • RAID Management: 3ware Disk Manager 2 (3DM 2); Command Line Utility (CLI); 3ware BIOS Manager (3BM); SNMP support
  • Power Requirements: +3.3 V
  • Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
  • Operating System Support: Windows Vista, Windows 7, Windows Server 2003/2008, Red Hat Linux, SuSE Linux, Fedora Core Linux, FreeBSD
  • Form Factor: Low-profile
  • Dimension: 6.6 x 2.536 inch
  • Package Content: 3ware SAS 9750-8i, two Mini-SAS x4 SAS cables(CBL-SFF8087-06M), LP Bracket, Driver & Documentation CD

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • 3Ware
  • LSI00213 (9750-8I KIT)
  • 830343001507
  • New
  • 1.4 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: 3ware • Part #: LSI00213 (9750-8I KIT) • UPC: 830343001507 • Category: Disk Controllers/RAID Cards

3ware LSI00213 (9750-8I KIT) 8 PORT INT 6GB S SATASAS PCIE 20 512MB IN THE BOX SAS 9750 8I T
