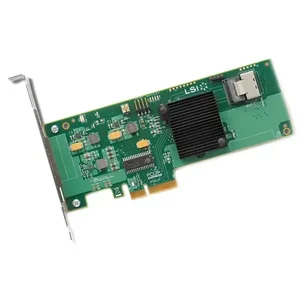

Broadcom LSI00190 LSI 9211 4I 4 Port 6Gb s SAS SATA PCI Express x4 Internal Single RAID Host Bus Adapter

Out of Stock
Condition: New

$481.65  $650.23
 Free Shipping for this Item

Product Overview

DISC PROD SPCL SOURCING SEE NOTES

Technical Specifications

Specifications
  • Mfr Part Number: LSI00190(9211-4I SINGLE)
  • Features:
    • 6Gb/s data transfer rate per port
    • One x4 internal SFF8087 Mini-SAS connector
    • x4 5GT/s PCI Express 2.0 host interface
    • MD2 low-profile form-factor design
    • Integrated RAID 0, 1, 1E, and 10
    • Maximum power usage of 9W
    • Connects to SAS and SATA HDDs, SSDs, and tape drives
    • Support for upto 256 physical devices
    • Fusion-MPT architecture can achieve more than 290,000 I/Os per second
    • Consistency Check
    • Hot Spare Support
    • SMART error detection
    • PowerPC 440 @533MHz
    • Supports all major operating systems
    • RoHS compliant
  • SAS Bandwidths:
    • Half Duplex: Single Lane - 600MB/s; Wide Port (2 Lanes) - 1200MB/s; Wide Port (3 Lanes) - 1800MB/s; Wide Port (4 Lanes) - 2400MB/s; Wide Port (2x 4) - 4800MB/s
    • Full Duplex: Single Lane - 1200MB/s; Wide port (2 lanes)- 2400MB/s; Wide Port (4 Lanes) - 4800MB/s
  • Bracket: Full Height and Low Profile
  • PCI Certification: PCI-Express 2.0 x4
  • SAS Bus: 1 x4 6Gb/s SAS & SATA Ports
  • SAS Controller ASIC: LSISAS2008
  • Internal Connectors: 1x x4 Internal Mini-SAS SFF8087(horizontal orientation)
  • Integrated RAID Levels: Integrated RAID 0, 1, 1E and 10
  • Max. Number of SATA and SAS Physical Devices: 256
  • PCI Voltage: +12V ±10%
  • PCI Power: 13.5 Watts
  • MTFB: >2,000,000 Hours
  • Support OS: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, VMware
  • PCI Form Factor: MD2 Low-Profile, 6.6 x 2.713 inch

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Broadcom
  • LSI00190
  • 830343006670
  • New
  • 1.4 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Sep 09, 2020
Product Identifiers: Brand: Broadcom • Part #: LSI00190 • UPC: 830343006670 • Category: Disk Controllers/RAID Cards
