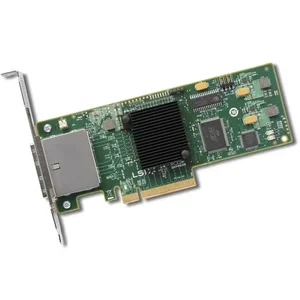

Broadcom LSI00188 LSI Logic SAS9200-8E 6Gb/s SAS/SATA PCI-E RAID Controller

Out of Stock
Condition: New

$529.80  $715.23
Free Shipping for this Item

Product Overview

The LSI Logic SAS9200-8E is a high-performance RAID controller designed to support both SAS and SATA drives, making it ideal for data centers and enterprise environments. Featuring a PCI Express 2.0 interface, this controller offers robust data transfer rates and exceptional I/O performance. With support for up to 512 physical devices, it is well-suited for managing large storage systems. The flexible design includes two x4 external SFF8088 Mini-SAS connectors and comes with both full height and low profile brackets for versatile installation.

Technical Specifications

  • High Data Transfer Rate: 6Gb/s per port for optimal performance
  • Connectivity: Two x4 external SFF8088 Mini-SAS connectors
  • PCI Express Interface: x8, 5GT/s PCI Express 2.0 for superior bandwidth
  • Power Efficiency: Maximum power usage of 9W
  • Device Compatibility: Connects to both SAS and SATA HDDs, SSDs, and tape drives
  • Device Support: Supports up to 512 physical devices
  • Performance Architecture: Fusion-MPT architecture for over 290,000 I/Os per second
  • Processor: PowerPC 440 @ 533MHz for effective data handling
  • Operating System Support: Compatible with Microsoft Windows, Linux, Solaris, and VMware
  • Compliance: RoHS compliant for environmental safety
  • SAS Bandwidths:
    • Half Duplex - up to 2400MB/s; Full Duplex - up to 4800MB/s
  • Form Factor: MD2 low-profile form-factor
  • MTFB: Over 2,000,000 hours for reliability

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Broadcom
  • LSI00188
  • 830343006656
  • New
  • 1.4 lbs
  • 5 X 5 X 5
  • Feb 19, 2026
  • Jan 06, 2010
Product Identifiers: Brand: Broadcom • Part #: LSI00188 • UPC: 830343006656 • Category: Disk Controllers/RAID Cards
