Special Order
Ships in 1-2 weeks
Condition: New
| Specifications | |
|---|---|

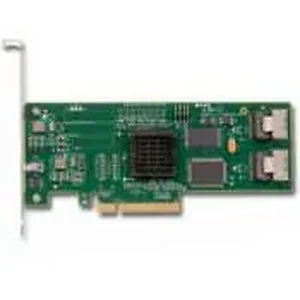

| Mfr Part Number | LSI00182 (SAS3081E-R SINGLE PACK) |
| PCI Bus | PCI-Express |
| PCI Modes | Bus Master DMA |
| PCI Card Type | 3.3 Volt Add-in Card |
| Half Duplex | 1x - 250MB/s; 4x - 1000MB/s; 8x - 2000MB/s |
| Full Duplex | 1x - 500MB/s; 4x - 2000MB/s; 8x - 4000MB/s |
| Half Duplex | Single Lane - 300MB/s; Wide Port (2 Lanes) - 600MB/s; Wide Port (4 Lanes) - 1200MB/s |
| Full Duplex | Single SAS Lane - 600MB/s; Wide Port (2 Lanes) - 1200MB/s; Wide Port (4 Lanes) - 2400MB/s |
| Bracket | Full Height and Low Profile |
| PCI Certification | PCI-Express 1.0a |
| SAS Bus | 8x 3Gb/s SAS/SATA Ports |
| SAS Controller ASIC | LSISAS1068E |
| Internal Connectors | 2x SFF-8087 Connectors |
| LED Indicators | 8x Internal Activity per PHY; 8x Internal Fault per PHY |
| Integrated RAID Levels | RAID 0, 1, 1E and 10E |
| Max. Number of Physical Devices | 244 |
| PCI Voltage | +12V 10% |
| PCI Power | 10 Watts |
| MTFB | >200,000 Hours |
| EMC | Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548) |
| Safety | EN60950 |
| PCI Form Factor | Low Profile, 6.6 x 2.5 inch |
