SKU: J3IV50GPIQ |  Mfg. Part: 05-26106-00  | UPC: 830343003112  |
 3 Reviews  |     Share

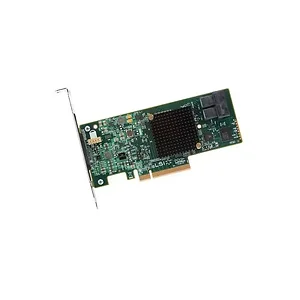

Broadcom 05-26106-00 LSI MegaRAID 9341-8i Controller Card - 8-Port SATA/SAS

Out of Stock
Condition: New

$265.14  $357.94
 Free Shipping for this Item

Product Overview

The LSI MegaRAID 9341-8i is a high-performance RAID controller card designed for reliability and efficient data management. With support for SATA and SAS drives, this controller is suitable for various storage configurations. It features extensive operating system compatibility, robust RAID management software, and an impressive data transfer rate of up to 12Gb/s per port, making it ideal for data-intensive applications.

Technical Specifications

  • RAID-on-Chip Controller: LSISAS3008 PowerPC 476 controller at 1.2 GHz
  • RAID Management Software: MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
  • Host Bus Type: x8 lane PCI Express 3.0
  • Internal Ports: 8
  • Data Transfer Rates: Up to 12Gb/s per port
  • Devices Supported: Non-RAID (JBOD Mode): 64; RAID 0: 32 per volume; RAID 1: 2 per volume plus hot spare; RAID 5: 32 per volume; RAID 10: 32 per volume; RAID 50: 32 per volume
  • Operating Temperature: 0 C to 70 C
  • Operating System Support: Extensive support includes Microsoft Windows Server 2012/Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.
  • Internal Connectors: One, x4, SFF-8643 mini-SAS HD horizontal connector placement
  • MTBF: >2,800,000 hours
  • Operating Voltage: +12V
  • Regulatory Certifications: EMC: Class B-US (CFR 47, P15B) Canada (ICES-003) Japan (V-3/02.04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548)
  • Item Dimensions: 6 x 10.5 x 1.75 inches
  • Weight: 1.00 lb
  • Warranty: 3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Broadcom
  • 05-26106-00
  • B00GTDT0VC
  • 830343003112
  • New
  • 1 lbs
  • 6 X 5 X 5
  • Mar 18, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Broadcom • Part #: 05-26106-00 • UPC: 830343003112 • ASIN: B00GTDT0VC • Category: Disk Controllers/RAID Cards

Broadcom 05-26106-00 LSI MegaRAID 9341-8i Controller Card - 8-Port SATA/SAS

Reviews for Broadcom 05-26106-00

$265.14
