Product Overview
Technical InformationHost Interface: PCI Express 3.0 x8Controller Type: 12Gb/s SAS, Serial ATA/600RAID Supported: YesRAID Levels: 0, 1, 5, 10, 50, JBODInterfaces/PortsTotal Number of SAS Ports: 4Number of SAS Ports (Internal): 1SAS Connector Details: 1 SFF-8643Physical CharacteristicsHeight: 2.6"Width: 6"Form Factor: Plug-in CardCard Height: Low-profileMiscellaneousPackage Contents: MegaRAID SAS 9341-4i SGL Quick Installation Guide Low Profile L-bracket Platform Supported: PC, SPARCWarrantyLimited Warranty: 3 Year
Technical Specifications
Description

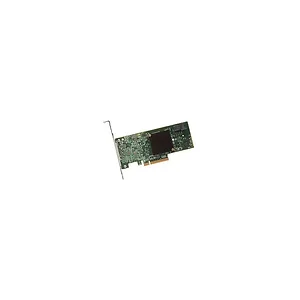

MegaRAID SAS 9341-4i, QIG, LP bracket RAID-on-Chip Controller
LSISAS3008 PowerPC 476 controller at 1.2 GHz RAID Management Software
MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure) Host Bus Type
x8 lane PCI Express 3.0 Internal Ports
4 Data Transfer Rates
Up to 12Gb/s per port Devices Supported
Non-RAID (JBOD Mode): 64
RAID 0: 32 per volume
RAID 1: 2 per volume plus hot spare
RAID 5: 32 per volume
RAID 10: 32 per volume
RAID 50: 32 per volume Operating Temperature
0C to 70C Operating System
Extensive support includes Microsoft Windows Server 2012/Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more. Internal Connectors
One HD Mini-SAS SFF8643 (Horizontal mount) MTBF
>2,800,000 hours Operating Voltage
+12V Regulatory Certifications
EMC: Class B-US (CFR 47, P15B) Canada (ICES-003) Japan (V-3/02.04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548) Safety: EN60950 Item Dimension (L"xW"xH")
6 x 11 x 2
Weight
1.00 lbs
Warranty Information
3 Years
