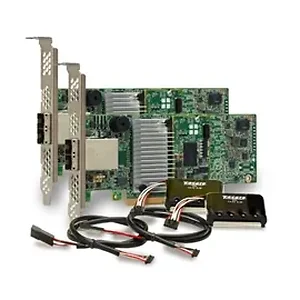

Broadcom 05-25528-06 LSI Logic IO Card 05-25528-06 9380-8e 8Port SAS 12Gb/s PCI-Express 2GB DDR3 2xSyncro Controller Bro

Syncro solutions are designed to provide high availability (HA) and application uptime at a fraction of the cost and complexity of existing HA solutions. Syncro shared DAS solutions use two RAID controller cards, delivering shared storage clustering where controller-to-controller connectivity is provided through the SAS interface. Utilizing two volume servers and an inexpensive JBOD, the Syncro 12Gb/s 9380-8e shared DAS solution provides a low-cost HA solution at twice the speed of the previous generation for performance-intensive applications.

Build a simple, low-cost, high-availability cluster for small and medium businesses (SMBs)

Maintain application uptime and continuity during system failures

Experience an efficient, shared-storage backbone, running at twice the speed of the previous generation

RAID and HA Management
MegaRAID Management Suite: MegaRAID Storage Manager, MegaCLI (command-line interface), WebBIOS, SMI-S

Controller Operating Voltage
+3.3V, +12V

Cache Protection
MegaRAID CacheVault flash cache protection (included)

LUN Support
Up to 64TB

Drive Support Per Controller
64 virtual drives (64 total in HA domain)

RAID Levels
0, 1, 5, 6, 10, 50, 60

Host Bus Type
x8 lane PCI Express 3.0
Devices Supported
Up to 96 6G SAS and/or NL-SAS dual-ported HDDs and SSDs (w/SCSI-3 PR)
Up to 31 6G SAS enclosure/expander devices
Maximum of 120 dual-ported SAS devices in the HA storage domain.

External Connectors
2 Mini-SAS HD SFF8644

OS Support
Microsoft Windows Server 2012 and Server 2008 R2, Red Hat Enterprise Linux 6.3 and 6.4, SuSE Linux Enterprise Server 11 SP2 and SP3

MTBF
1,343,187 hours
Regulatory Certifications
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3 FCC Class A, Class B UL1950 UL CSA C22.2 VCCI RRL for MIC BSMIC-tick RoHS WEEE

Item Dimension (L"xW"xH"):
10.88 x 10.5 x 2.5

Weight:
2.9 lb

Warranty Information:
3 Years
