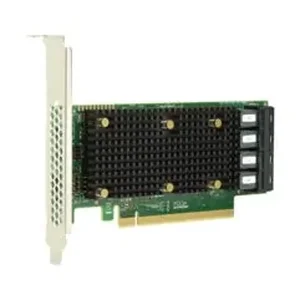

Broadcom 05-50047-00 LSI Logic 9405W-16I HBA 16-Port SAS/SATA Controller Card

Out of Stock
Condition: New

$665.82  $898.86
 Free Shipping for this Item

Product Overview

The LSI Logic 9405W-16I is a high-performance host bus adapter designed for optimal performance in data storage environments. With support for up to 16 SAS/SATA devices and 24 NVMe connections, this controller card is ideal for enterprises looking to enhance their storage capabilities.

Featuring a PCIe 3.1 x16 interface and robust management software, the 9405W-16I ensures maximum data throughput and compatibility across various operating systems, including Microsoft Windows, Linux, and VMware.

Technical Specifications

  • Lifecycle: Active
  • Host Bus Type: PCIe 3.1 x16
  • Devices Supported: SAS/SATA: 1024, NVMe: 24
  • Internal Connectors: 4 Mini-SAS HD x4 SFF-8643
  • Internal Ports: 16
  • Operating Temperature: 0°C to 55°C
  • Operating Voltage (V): +12V +/-8%, 3.3V +/-9%
  • OS Support: Microsoft Windows, Linux, VMware
  • Typical Power: 14.0W
  • Cable Support: Passive
  • I/O Controller: SAS3616W
  • MTBF: > 4,500,000 hours at 40°C
  • Operating Humidity: 20% to 80% Non-condensing
  • Brackets: Full height and low profile
  • Regulatory Certifications: RoHS, FCC, WEEE, and various international standards
  • Data Transfer Rates: 12Gb/s SAS-3 Compliant
  • Management Software: LSI Storage Authority (LSA), StorCLI, HII
  • Whats in the Box: 9405W-16i HBA, Low Profile Bracket, Getting Started Guide
  • Item Dimension (L"xW"xH"): 9 x 6 x 3
  • Weight: 2 lbs
  • Warranty Information: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Broadcom
  • 05-50047-00
  • B07F94N1KJ
  • 830343007455
  • New
  • 2 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Sep 20, 2019
Product Identifiers: Brand: Broadcom • Part #: 05-50047-00 • UPC: 830343007455 • ASIN: B07F94N1KJ • Category: Other Interface/Add-On Cards
