LSATA8 - Startech STORAGE CABLE - SATA (7 PIN, DATA) LEFT | Aztek Computers
29+Years
SKU: R29JXVMJHV |  Mfg. Part: LSATA8  | UPC: 065030841955  |  0 Reviews  |     Share

LSATA8 - Startech STORAGE CABLE - SATA (7 PIN, DATA) LEFT CONNECTOR - FEMALE LEFT GENDER - SATA (7

17 Available
Condition: New

$25.49  $34.41
Free Shipping for this Item

Product Overview

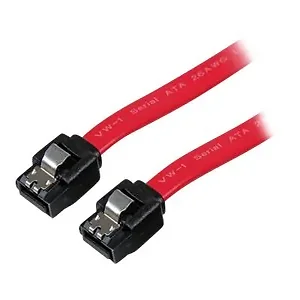

StarTech.com 8in Latching SATA Cable

Expert Overview

The StarTech.com LSATA8 is an 8-inch latching SATA 3.0 data cable designed for internal system connections. This cable facilitates data transfer between SATA 3.0 compliant drives and host controllers, supporting bandwidths up to 6Gbps. It features two 7-pin male SATA 3.0 connectors, both equipped with latching mechanisms to secure connections and prevent accidental disconnections in server or workstation environments. The cable's flexible, low-profile design aims to improve airflow and reduce cable clutter within computer cases, contributing to better thermal management. Constructed with copper conductors and a PVC jacket, it offers durability for routine system builds and upgrades. This cable is suitable for IT professionals and system integrators requiring reliable internal SATA data links for hard drives in workstations and servers.

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:LSATA8
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:8in Latching SATA Cable
Marketing Information:

The LSATA8 SATA Cable features two latching 7-pin data receptacles and supports full SATA 3.0 bandwidth of up to 6Gbps when used with SATA 3.0 compliant drives.

The latching connectors lock when connected to a supporting (latchable) SATA port, ensuring a snug, and secured data connection every time to prevent accidental disconnects.

Featuring a low profile, yet durable construction, the flexible design improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.

Constructed of only top quality materials and designed for optimum performance and reliability this 8" SATA cable is backed by our lifetime warranty.


Packaged Quantity:1
Product Type:Data Transfer Cable

Technical Information
Cable Type:SATA
Cable Length:8"
Connector Type on First End:SATA 3.0 - Male
Connector on First End Details:1 x 7-pin SATA 3.0 - Male
Connector Type on Second End:SATA 3.0 - Male
Connector on Second End Details:1 x 7-pin SATA 3.0 - Male
Features:
  • Locking Latch
  • Flexible

Conductor:Copper
Device Supported:
  • Hard Drive
  • Workstation
  • Server

American Wire Gauge:26 AWG
Data Transfer Rate:6 Gbit/s
Physical Characteristics
Product Color:Red
Jacket Material:Polyvinyl Chloride (PVC)
Weight (Approximate):0.02 lb
Miscellaneous
Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH

Country of Origin:China
Warranty
Limited Warranty:Lifetime

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • STARTECH
  • LSATA8
  • B00866XX2M
  • 065030841955
  • New
  • 0.04 lbs
  • 8 X 0 X 4
  • Aug 30, 2026
  • Dec 21, 2010
  • Yes
  • CN
Product Identifiers: Brand: Startech • Part #: LSATA8 • UPC: 065030841955 • ASIN: B00866XX2M • Category: Ethernet Cables (RJ-45/8P8C) • TAA Compliant

Frequently Asked Questions

What is the maximum data transfer rate supported by this cable?

The LSATA8 cable supports full SATA 3.0 bandwidth, allowing for data transfer rates of up to 6Gbps when used with compatible SATA 3.0 drives and controllers.

What type of connectors does this cable have?

This cable features two 7-pin SATA 3.0 male connectors, both equipped with latching mechanisms for secure connections.

What devices are supported by this cable?

The cable is designed to support hard drives, workstations, and servers, facilitating internal data connections for these devices.

What is the length of the cable?

The StarTech.com 8in Latching SATA Cable has a length of 8 inches.
