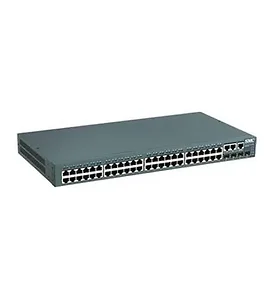

Lg Electronics LGD-SMC8150L2 50 PT 10 100 1000 MANAGED SWITCH 4 COMBO

The SMC8150L2 is a feature-rich 10/100/1000BASE-T standalone managed switch. This gigabit edge switch is designed to handle high bandwidth applications and capable of reaching up to 100Gbps with a non-blocking single chip switching architecture. The switch includes IP Clustering supporting up to 32 units from both the SMC61xxL2 and the SMC81xxL2 families. This enables single IP management across the network increasing management efficiency. It also provides cost-effective, gigabit ethernet switching for bandwidth-intensive networks that require advanced switching features: Quality of Service (QoS) with four levels of priority, weighted fair queuing and L2/3/4 IP. With these features the SMC8150L2 switch ensures smooth transmission of mission critical data; VLANs based on frame tags, ports or protocol, support for automatic GVRP LAN registration and Multiple Spanning Tree provides maximum security and bandwidth efficiency. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL, TACACS+, and ACL. This switch is ideal for SMB and enterprise workgroup installations.

Form Factor	External
Data Transfer Rate	1 Gbps
Data Link Protocol	Ethernet; Fast Ethernet; Gigabit Ethernet
Networking / Ports Qty	50
Connectivity Technology	Wired
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Auto-sensing per device, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support
Dimensions&Miscellaneous
Width	17.3 Inch
Depth	9.1 Inch
Height	1.7 Inch
System
Networking / Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
Remote Management Protocol	HTTP; SNMP; HTTPS; RMON 1; RMON 2; RMON 3; RMON 9; Telnet
Interfaces	Ethernet 10Base/100Base/1000Base - RJ-45; 50 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - console - RJ-45
Connections	4 ( 4 ) x SFP (mini-GBIC)
Service&Support
Service & Support Type	Limited lifetime warranty
UNSPSC Code
UNSPSC Code	43222612
