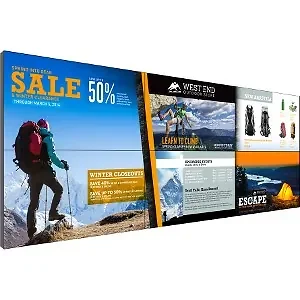

Planar 997-8165-01 LCD 997-8165-00 LX46HDU-L-F 46 Video Wall System 1920x1080 8ms 3500:1 500nits Landscape Only

For government and military customers delivering highly sensitive information, the Clarity Matrix Fiber Video Extension option provides a more secure and longer distance option for extending the video signal from the Clarity Matrix off-board electronics to Clarity Matrix LCD video wall displays.

The Clarity Matrix Fiber Video Extension provides integrated video extension over standard multi-mode or singlemode fiber optic cable.

The Clarity Matrix Fiber Video Extension also incorporates an embedded USB extension in the fiber optic cable, eliminating the need for a third-party USB extender.

Planar Part Number
997-8165-00

Product Name
LX46HDU-L-F

Technology
Commercial-grade direct view LCD

Diagonal
46 inches

Aspect Ratio
16:9

Native Resolution Panels
1920 x 1080

Tiled Bezel Width
3.7 mm

Brightness (typ)
500 cd/m or nits

Response Time (typ)
8 ms

Contrast ratio (full field)
3500:1

Full viewing angle
178 degrees

Backlight life (1/2 brightness)
50,000 Hrs

Mounted depth
3.6" wall to front of screen

Acoustic noise
Fanless operation

Heat load
326 BTU per hour at 500 nit

Operating temperature range
5 - 40 Degrees C

Operating humidity range
20-90% RH non-condensing

Backlight control
Individual and wall control

Backlight sensing and reporting
At display level

Display module position sensing
Auto-sensing integrated

Power Consumption (typ)
137 watts

Power supply voltage
100-230V AC 10%, 50 to 60 Hz

Power Status
Diagnostics LEDs, health monitoring and alerts

Safety regulations
Complies with EN60950, FCC Class A, CISPR22/85, CE, EU RoHS

Data Inputs
4 Single Link HDMI inputs, 1 DisplayPort input

Control
IR Remote, RS232, Ethernet (optional)

Fiber Video Extension Module Option
Type: 1 RU rack mount module drives up to 4 panels.

Fiber Video Extension Module Outputs
SFP multi-mode transceivers supports distances up to 300m from wall. Single-mode compatible up to 10k from the wall.

Touch Options
Clarity Matrix MultiTouch Kits

Item Dimension (L inchxW inchxH inch)
41 x 23 x 4

Weight
142 lb

Warranty Information
3-Years
