Product Overview

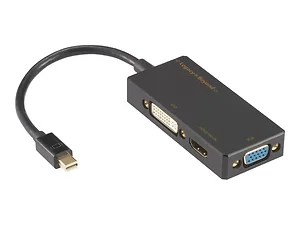

SIIG's Mini DisplayPort to HDMI/DVI/VGA 3-in-1 Adapter instantly expands the compatibility of your Mini DisplayPort laptop or desktop computer to work with most mainstream displays and HDTVs. It provides 3 output options to allow you to connect your mini DisplayPort (Thunderbolt 2) computer to a 4K HDMI, DVI, or VGA display (one at a time). This 3-in-1 adapter is easy to use, with no additional adapter and driver installation is required.
Technical Specifications
SIIGs Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter instantly expands the compatibility of your Mini DisplayPortTM laptop or desktop computer to work with most mainstream displays. It provides 3 output options to allow you to connect your mini DisplayPort (Thunderbolt) computer to a 4K HDMI, DVI or VGA display. This 3-in-1 adapter is easy to use, no additional adapter and driver installation is required. Compact and lightweight form factor makes it a space-saving and portable adapter for use in business, at home or on-the-go.
Features
Connects Mini DisplayPort (Thunderbolt) enabled PC/Mac to either a HDMI, DVI or VGA monitor or projector instantly
3-in-1 Converter Solution: Simply expands the compatibility between Mini DisplayPort and mainstream display interfaces
Flawless Resolution: Support HDMI A/V signals in ultra-high resolution up to 4K x 2K at 30Hz with up to 7.1 channel audio. 2048x1152 via VGA and 1080p via DVI output (video signal only)
Plug-n-play: No driver installation or power adapter required
High quality video assured: Gold-plated connectors provide optimal conductivity and corrosion resistant
Compact and Lightweight: The space-saving design is portable and easy to take with you while on-the-go
Chipset
ANX9833 + PS8339
Version
Mini DisplayPort v1.2
Resolution
HDMI: Up to 4Kx2K at 30Hz
DVI: Up to 1920x1080 at 60Hz
VGA: Up to 2048x1152 at 60Hz
Audio
HDMI: Up to 7.1 channel audio output
DVI and VGA: No audio output
Connectors
1x 20-pin, Mini DisplayPort, Male, Input
1x 19-pin, HDMI, Female, Output
1x 25-pin, DVI-D, Female, Output
1x 15-pin, D-sub VGA, Female, Output
Product
Embedded cable length: 150mm (5.91")
Color: Black
Material: Plastic
Environmental conditions
Operating temperature: 32 to 113 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 85% (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
2 x 6 x 8
Weight
1 lb
Warranty Information
1 Year
