LB-WR0011-S1 - Siig PCIE EXPANSION QUICKLY ADDS 2T2R DUAL BAND | Aztek Computers
29+Years
SKU: VIJE7DPSSD |  Mfg. Part: LB-WR0011-S1  | UPC: 662774044132  |  0 Reviews  |     Share

LB-WR0011-S1 - Siig PCIE EXPANSION QUICKLY ADDS 2T2R DUAL BAND WIFI CONNECTIVITY VIA AN AVAILABLE PC

Special Order
Ships in 1-2 weeks
Condition: New

$46.17  $62.33
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

ETHERNET PCIE CARD - AC1200

Expert Overview

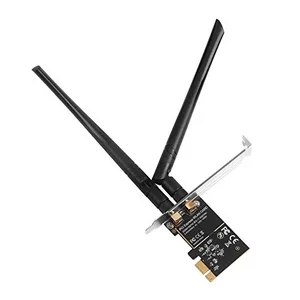

The Siig LB-WR0011-S1 is a PCIe expansion card designed to integrate 2T2R dual-band Wi-Fi connectivity into desktop systems. This AC1200 Ethernet PCIe card utilizes a RTL8812AE chipset and connects via an available x1 PCI Express 2.1 slot, supporting a data rate of up to 867 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. It is suitable for business environments requiring an internal wireless solution for desktop PCs that lack integrated Wi-Fi or need an upgrade to 802.11ac standards. The card supports common industry standards including IEEE 802.11ac/n/b/g/a and security protocols such as WPA, WPA2, and WEP. It includes two 5dBi unfixed connectors for antenna attachment. This product addresses the need for reliable, internal wireless network access in professional settings, avoiding external USB adapters and freeing up other ports.

Technical Specifications

Chipset:
RTL8812AE
PCI Express 2.1 (5.0 GT/s) compliant
PCI Express bus connector:
x1 PCI Express Industry Standards:
IEEE802.11.ac, IEEE802.11.n, IEEE802.11.b, IEEE802.11.g, IEEE802.11.a
Security:
WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit 128bit, IEEE 802.11x, IEEE 802.11i Data Rates:
5G up to 867M / 2.4G up to 300M
Out-Power 5G:
802.11.ac at 54m: 15dBm
802.11.ac at HT20: 15dBm
802.11.ac at HT40: 15dBm
802.11.ac at HT80: 13.5dBm
Out-Power 2.4G:
802.11.b at 11M: 18dBm
802.11.g at 54m: 15dBm
802.11.n at HT20: 15dBm
802.11.n at HT40: 14dBm
Sensitivity 5G_11ac:
HT80M_MCS9: -51dBm at 10% PER
HT40M_MCS7: -62dBm at 10% PER
HT20M_MCS7: -65dBm at 10% PER
Sensitivity 11N_2.4G
HT40M_MCS7: -62dBm at 10% PER
HT20M_MCS7: -65dBm at 10% PER
OFDM_54M: -68dBm at 10% PER
11b_11M: -81dBm at 10% PER
Product:
Color: Black
Connectors: 2 x 5dBi un-fixed Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: -14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
3 x 5 x 1
Weight
1.00 LB
Warranty Information
1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • LB-WR0011-S1
  • B08WH6V6YF
  • 662774044132
  • New
  • 0.35 lbs
  • 1 X 8 X 1
  • Today - Sep 15, 2026
  • Jul 28, 2020
  • Yes
  • CN
Product Identifiers: Brand: Siig • Part #: LB-WR0011-S1 • UPC: 662774044132 • ASIN: B08WH6V6YF • Category: Wireless Routers • TAA Compliant

Frequently Asked Questions

What PCI Express slot type is required for this card?

This card requires an available x1 PCI Express bus connector and is compliant with PCI Express 2.1 (5.0 GT/s).

What Wi-Fi standards does this card support?

The card supports IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11a industry standards.

What are the maximum data rates for each band?

The card offers data rates of up to 867 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band.

What security protocols are supported by this wireless card?

It supports WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit/128bit, IEEE 802.11x, and IEEE 802.11i security protocols.
