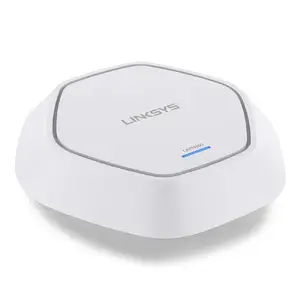

Linksys LAPN300 IEEE 802.11n 54 Mbit/s Wireless Access Point - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountabl

Specifications

• Mfr Part Number: LAPN300
• Features:
  • Fast Transfer Rate - Provides high-speed connectivity at transfer rates of up to 300 Mbps for notebooks, smartphones, tablets, and other Wi-Fi enabled devices
  • Optimal Wireless Coverage - The Linksys Wireless-N Access Point offers high power for better, wider wireless coverage for you and your business, strengthening your network connection in hard-to-reach areas
  • Flexible Deployment - Supports deployment as a traditional access point or set up as a workgroup bridge to extend your wireless range coverage
  • Easy To Use - Integrated with 802.3af/at PoE capability to eliminate external adapters and facilitate optimal placement
  • Advanced Security - Protect your network with advanced security features including Rogue AP detection, SSID to VLAN mapping, and 802.1X Supplicant
• Standards: IEEE 802.11b/g/n, IEEE 802.3/3u/3af/3at
• Ports: 1x Gigabit Ethernet Port
• Frequency: 2.4 GHz
• MIMO: 2 x 2
• Antenna: Internal Antenna
• RF Output Power: High Power PA
• Installation Options: Ceiling Mount, Wall Mount or Desktop
• Security Lock: Kensington Lock Slot
• LED: One system LED
• Hardware Reset Button: Yes
• Frequency Band and Operating Channels: 2.412 to 2.462 GHz; 11 Channels
• Antenna Gain in dBi: 1.8 dBi
• Transmitted Power:
  • 802.11b: 21 dBm @ 11 Mbps
  • 802.11g: 20 dBm @ 54 Mbps
  • 802.11n: 19 dBm @ HT20HT40, MCS7/15
• Receiver Sensitivity:
  • 802.11b: -85 dBm @ 11 Mbps
  • 802.11g: -70 dBm @ 54 Mbps
  • 802.11n: -65 dBm @ HT20 MCS7/15
  • 802.11n: -62 dBm @ HT40 MCS7/15
• VLAN:
  • VLAN Support: Yes, 802.1q-based VLAN
  • Number of VLANS: 9, 1 management VLAN plus 8 VLANs for SSID
  • SSID to VLAN Mapping: Yes
• IPv6:
  • Path MTU discovery (RFC1981)
  • Internet Protocol v6 -IPv6 (RFC2460)
  • IPv6 Neighbor Discovery (ND) (RFC2461)
  • IPv6 Stateless Address auto-configuration (RFC2462)
  • Dynamic Host Configuration Protocol for IPv6 (DHCPv6) (RFC 3315)
  • ICMPv6 - Internet Control Message Protocol v6 ICMPv6 RFC2643
  • IPv6 Address architecture RFC3513
  • Default address selection RFC3484
  • Transmission of IPv6 Packets over Ethernet Networks (RFC 2464)
  • IPv6 Node - RFC4294
  • Dual IPv4/IPv6 stack
• Workgroup Bridge: Yes
• WEP/WPA/WPA2: Yes, Enterprise authentication is included
• Access Control: Yes, MAC based ACL with local or remote RADIUS server authentication
• Rogue AP Detection: Yes
• 802.1X Supplicant: Yes
• Channel Isolation: Yes
• WMM: Yes
• Rate Limit: Yes, Bandwidth Management per SSID
• Scheduler: Yes, Time-based profiles per SSID
• Management Interface: Web Browser, SNMP
• Event Notification: Local Log, Remote Syslog, and Email Alert
• Network Diagnostics: Log, Ping, Packet Capture
• Power:
  • AC Power Adapter: 12V / 1A
  • Maximum Power Consumption: 12.5W
• Compliance: Class B, Wireless
• Regulatory Certification: FCC, CE, IC
• Dimensions (WxLxH): 9.33 x 9.57 x 1.72 inch / 236.98 x 243.08 x 43.69 mm
• Weight: 1.08 lbs / 489.88 g
• Package Contents: Linksys LAPN300
