KTF0186 - Faria Beede Instruments Platinum Series Box Set - Inboard Motors

Platinum Series Box Set - Inboard Motors

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Packaged and ready for the display counter. This 6 Gauge Boxed Sets offer a complete set of gauges ready to install.

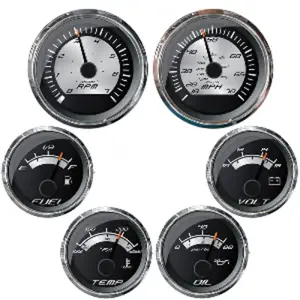

Inboard Motors Boxed Set Includes:

• Speedometer (0 to 70 MPH) (Mechanical)
• Tachometer (0 to 7000 RPM)
• Fuel Level (E-1/2-F)
• Voltmeter (10-16 VDC)
• Oil Pressure (0 to 80 PSI)
• Temperature (100 to 250° F Deg)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N KTF0186

*Sold as a Box Set

**Gauge Covers not Included

The Faria Beede Instruments Platinum Series Box Set for Inboard Motors, part number KTF0186, provides a complete instrumentation solution for marine applications. This set is designed for businesses requiring reliable and integrated monitoring of key engine and vessel parameters. It addresses the need for a unified dashboard display, offering a speedometer, tachometer, fuel level gauge, voltmeter, oil pressure gauge, and temperature gauge in a single package. The instruments feature spun aluminum dials with custom graphics and a polished stainless steel bezel. Each gauge is equipped with a domed glass, fog-resistant, and scratch-resistant lens, suitable for marine environments. Illumination includes blue LED around the dial perimeter and a backlit fire-orange tip pointer. This boxed set is intended for direct installation in inboard motor systems, simplifying procurement and setup for new builds or instrumentation upgrades.
