Technical Specifications

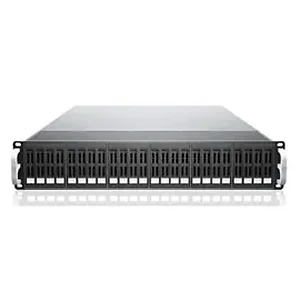

SANS DIGITAL STORAGE ES224X6+B 2U 24-BAY 2.5INCH SAS/SATA TO SAS JBOD RETAIL
The EliteSTOR ES224X6+B is a 2U SAS 6G JBOD rackmount for high capacity storage solution, with 2.5" form factor. Utilizing the latest`G SAS expander technology, the ES224X6+B provides over 24 Gb/s or𖣰MB/s of bandwidth to fulfill the most demanding application. The ES224X6+B supports 2.5" SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES224X6+B supports up to 24 2.5" SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES224X6+B is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES224X6+B is an ideal storage expansion solution for servers or high performance video editing workstations. -------------------------
VENDOR: Sans Digital
MPN: ES224X6+B
UPC: 739410733672
DETAIL SPECIFICATIONS
MODEL ES224X6+B
FORM FACTOR 2U Rackmount
HDD TRAYS 24 Hot-Swappable 2.5" Drive Bay
RAID MODE SUPPORTED JBOD (RAID is supported by additional RAID card)
MAXIMUM CAPACITY 24TB, Expandable to 120TB
DRIVE INTERFACE SAS 6G or SATA 6G
SUPPORTED RAID CONTROLLER Areca ARC-1880X LSI SAS MegaRAID Dell Perc SAS RAID Intel SAS RAID ATTO SAS RAID
HOST INTERFACE 6G SAS Expander, Mini-SAS / SFF-8088 x 1
EXPANSION PORTS Mini-SAS / SFF-8088 x 1 (Up to 5 units supported)
COOLING FAN Case Cooling fan x 2, Cooling fan x 2 from Power Supply
POWER SUPPLY Redundant 460W Power Supply x 2
CONTROLLER INTERFACE Via RAID Controller
STATUS INDICATORS Hard Drive and Failure LEDs
SAFETY REGULATIONS CE, FCC, UL, RoHS
ITEM DIMENSION (L"XW"XH"): 3.5 x 19 x 23
WEIGHT:Χ.0 lb
WARRANTY INFORMATION 3 Years
