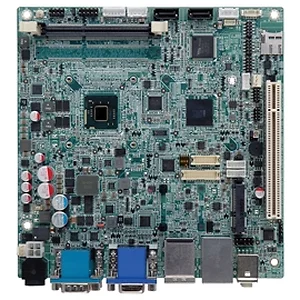

Iei Technology KINO-CV-N26001-R10 IEI KINO-CV-N26001-R10 Mini-ITX Motherboard

Out of Stock
Condition: New

$277.96  $375.25
 Free Shipping for this Item

Product Overview

The IEI KINO-CV-N26001-R10 is a compact Mini-ITX motherboard designed for embedded applications, featuring the dual-core Intel Atom N2600 processor. Its versatile design allows for various connectivity options and a range of supported environments, making it ideal for industrial and commercial use.

Technical Specifications

  • CPU: 1.6GHz Intel Atom N2600 dual-core processor
  • System Chipset: Intel NM10
  • BIOS: UEFI BIOS
  • System Memory: 1 x 800MHz DDR3/DDR3L (1.35V) SO-DIMM up to 2GB
  • Ethernet: Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
  • I/O Interface:
    • 1 x 6-pin KB/MS
    • 1 x microSD slot (bootable)
    • 1 x RS-422/485
    • 5 x RS-232
    • 2 x USB 3.0
    • 6 x USB 2.0
    • 2 x SATA 3Gb/s with 5V/12V power connector
  • Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
  • Super I/O: Fintek F81866
  • SMBus: 1 x 4-pin connector
  • Audio: Realtek ALC662 HD audio codec
  • Display Interfaces:
    • Supports dual LVDS, VGA and HDMI for dual independent display
    • 1 x VGA (up to 2048 x 1536 at 75Hz)
    • 1 x HDMI (up to 1920 x 1200 at 60Hz)
    • LVDS1 integrated in the N2600
    • Single-channel 18-bit LVDS by N2600, resolution support up to 1366x768
    • LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter
  • Expansion: 1 x PCIe Mini card slot (compatible with mSATA SSD storage), 1 x PCI slot
  • Watchdog Timer: Software programmable supports 1 to 255 sec. system reset by Super I/O
  • Power Supply: Maximum input voltage range: 9V to 28V, Recommended operating input voltage range: 12V to 24V, 1 x External 4-pin DIN DC jack, 1 x Internal 4-pin (2x2) power connector
  • Power Consumption: 12V at 2.4A (1.6GHz Intel N2600 CPU with DDR3 1333MHz 2GB DIMM)
  • Graphic: Intel GMA 3600 with 400 MHz graphics core speed for N2600
  • Operating Temperature: -20°C to 70°C with free air, -20°C to 70°C with force air for N2600 processor
  • Storage Temperature: -30°C to 80°C
  • Humidity: 5% to 95%, non-condensing
  • Fan Connector: 1 x 3-pin CPU fan connector, 1 x 3-pin system fan connector

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • IEI TECHNOLOGY
  • KINO-CV-N26001-R10
  • 885291005114
  • New
  • 1 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jun 22, 2017
Product Identifiers: Brand: Iei Technology • Part #: KINO-CV-N26001-R10 • UPC: 885291005114
