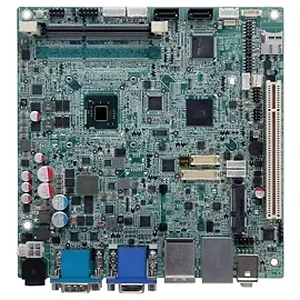

Iei Technology KINO-CV-D25501-R10 IEI KINO-CV-D25501 Motherboard with Intel Atom D2550

Out of Stock
Condition: New

$269.24  $363.47
 Free Shipping for this Item

Product Overview

The IEI KINO-CV-D25501 is a high-performance Mini-ITX motherboard equipped with the Intel Atom D2550 dual-core processor. Ideal for embedded systems, industrial applications, and digital signage, this motherboard features multiple connectivity options and supports dual independent displays.

Designed for versatility and reliability, it comes with extensive I/O interfaces and excellent thermal performance, making it suitable for various environments.

Technical Specifications

  • CPU: 1.86GHz Intel Atom D2550 dual-core processor
  • System Chipset: Intel NM10
  • BIOS: UEFI BIOS
  • System Memory: 1 x 1066MHz DDR3/D3L (1.35V) SO-DIMM, up to 4GB
  • Ethernet: Dual LAN with Realtek RTL8111E PCIe GbE controller and ASF 2.0 support
  • I/O Interface: 1 x 6-pin KB/MS
    1 x microSD slot (bootable)
    1 x RS-422/485
    5 x RS-232
    2 x USB 3.0
    6 x USB 2.0
    2 x SATA 3Gb/s with 5V/12V power connect
  • Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
  • Super I/O: Fintek F81866
  • SMBus: 1 x 4-pin connector
  • Audio: Realtek ALC662 HD audio codec
  • Display Interfaces: Supports dual LVDS, VGA and HDMI for dual independent display
    1 x VGA (up to 2048 x 1536 at 75Hz)
    1 x HDMI (up to 1920 x 1200 at 60Hz)
    Dual-channel LVDS support up to 1440x900
  • Expansion: 1 x PCIe Mini card slot (compatible with mSATA SSD storage)
    1 x PCI slot
  • Watchdog Timer: Software programmable, supports system reset from 1 to 255 sec.
  • Power Supply: Input voltage range: 9V to 28V; Recommended: 12V to 24V
    1 x External 4-pin DIN DC jack
    1 x Internal 4-pin (2x2) power connector
  • Power Consumption: 12V at 2.8A
  • Graphics: Intel GMA 3650 with 640 MHz graphics core speed for D2550
  • Operating Temperature: -20°C to 60°C (free air), -20°C to 70°C (forced air)
  • Storage Temperature: -30°C to 80°C
  • Humidity: 5% to 95%, non-condensing
  • Fan Connectors: 1 x 3-pin CPU fan connector; 1 x 3-pin system fan connector

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • IEI TECHNOLOGY
  • KINO-CV-D25501-R10
  • 885291005107
  • New
  • 1 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jun 22, 2017
Product Identifiers: Brand: Iei Technology • Part #: KINO-CV-D25501-R10 • UPC: 885291005107
