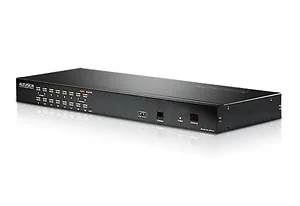

Aten Technologies KH1516A 16-Port Cat 5 High-Density KVM Switch

SKU: TDZGYTCNKU |  Mfg. Part: KH1516A  | UPC: 672792400407  |  0 Reviews  |  Share Make an offer

16 Available
Condition: New

$616.43  $832.18
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The Aten Technologies KH1516A is a 16-port Cat 5 KVM switch designed for managing multiple computers from a single console. This high-density switch is suitable for IT environments requiring centralized control over up to 16 systems, such as server rooms, data centers, or test labs. It addresses the challenge of space constraints and simplifies system administration by eliminating the need for separate keyboards, monitors, and mice for each connected computer. The switch supports a maximum resolution of 1600 x 1200 and features 16 RJ-45 network ports for computer connections. Console connectivity includes 2 PS/2 ports, 2 USB ports, and 1 VGA port. This unit provides a practical solution for businesses looking to streamline their IT infrastructure management.

Technical Specifications

  • Computer Connections Direct: 16
  • Computer Connections Maximum: 512 (via Daisy-chain)
  • Port Selection: OSD, Hotkey, Pushbutton
  • Console Ports: 2 x USB Type A Female, 2 x 6-pin Mini-DIN Female, 1 x HDB-15 Female (Blue)
  • KVM Ports: 16 x RJ-45 Female
  • Daisy Chain Ports: 1 x DB-25 Female (Black), 1 x DB-25 Male (Black)
  • Firmware Upgrade Port: 1 x RJ-11 Female (Black)
  • Power Connector: 1 x IEC 60320/C14
  • Port Selection Switches: 16 x Pushbutton
  • Reset Switch: 1 x Semi-recessed Pushbutton
  • Firmware Upgrade Switch: 1 x Slide
  • Power Switch: 1 x Rocker
  • Online LEDs: 16 (Green)
  • Selected LEDs: 16 (Orange)
  • Power LED: 1 (Blue)
  • Station ID LED: 1 x 2 Digit 7-segment (Orange)
  • Keyboard / Mouse Emulation: PS/2; USB
  • Scan Interval: 1–255 sec.
  • Video Resolution: 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
  • Maximum Input Power Rating: 100–240V AC; 50/60 Hz; 1A
  • Power Consumption AC110V: 5.3W:33BTU/h
  • Power Consumption AC220V: 5.3W:33BTU/h
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0–80% RH, Non-condensing

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • TAA Compliant:
  • Country of Origin:
  • Category:
  • Date First Available:
  • Aten Technologies
  • KH1516A
  • B004GKULFY
  • 672792400407
  • New
  • 8.3 lbs
  • 22 x 9 x 5 in
  • Yes
  • TW
  • KVM Switches
  • December 21, 2010
