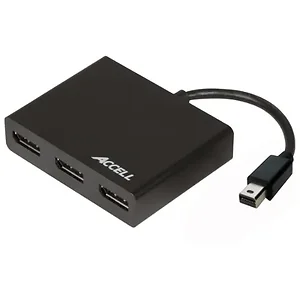

Accell K088B-003B Mini DisplayPort 1.2 to 3 DisplayPort MST Hub

• A two hub configuration requires a video card with 2 DisplayPort outputs.
• The maximum number of displays enabled simultaneously is limited by the number of Display Pipes in the graphics solution.
• Supports per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR), and 1.62 Gbps (RBR).
• Supports resolutions up to 2048x1536 at 60Hz for each monitor in DP1.2 MST mode.
• Supports resolutions up to 2560x1600 at 60Hz (clone mode) in DP1.1 (or DP1.2) in SST mode.
• Standards compliance: DisplayPort v1.2/1.1a, VESA DDM, HDCP V2.0, and EDID V1.4.
• Features 3 DP++ output ports, adaptable to any combination of 3 ports or 2 dual-link DVI ports.
• Input pixel data depth of 6/8/10/12 bits, supporting output pixel format RGB444.

System Requirements:

Graphic Output: DisplayPort v.1.1 or v.1.2. Works on Windows PC and Mac OS computers.

Package Includes:

Multi-Display Hub, AC Adapter (Input: 5V, Output: 3.3V), Product Guide.

Item Dimensions: 11 x 8 x 2 inches.

Weight: 2 lb.

Warranty Information: 2 years.
