Product Overview

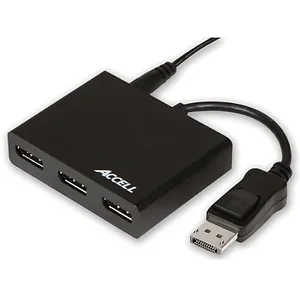

The Accell DisplayPort 1.2 to 3 DisplayPort Multi-Display MST Hub allows you to enjoy up to three DisplayPort monitors from a single DisplayPort output. Available in DisplayPort and miniDisplayPort versions, the hubs utilize the new multi-stream transport (MST) protocol, supporting up to three displays independently at 2048 x 1536 at 60Hz with DisplayPort 1.2 or 2560 x 1600 at 60Hz (mirror mode) with DisplayPort 1.1 single-stream transport (SST).
Technical Specifications
Specifications: Data bandwidth up to 5.4Gbps per lane, 21.6Gbps total Supports resolutions up to 2048x1536 at 60Hz on 3 independent displays with DP1.2 MST mode Supports resolutions up to 2560x1600 at 60Hz on 3 mirrored displays with DP1.1 (or 1.2) SST mode Compliant to DisplayPort versions 1.2 and 1.1a, VESA DDM, HDCP 2.0, and EDID 1.4 Features 3 DP++ output ports, enabling any combination of HDMI, VGA, or DVI outputs Supports 6/8/10/12-bit color depth, RGB444 pixel format System Requirements: DisplayPort 1.1 or 1.2 Windows PC Recommended for use with DisplayPort monitors. Testing has found a lack of compatibility with some systems when using DVI or HDMI adapters. For optimum compatibility, we recommend Accell adapters to convert video outputs to HDMI, DVI, or VGA. Package Includes: Multi-Display Hub AC Adapter: 5V 2.0A output AC Adapter: 5V 2.0A output Item Dimension (L inchxW inchxH inch)
10 x 8 x 2
Weight
1.00 lb
Warranty Information
2-Year Replacement
