Technical Specifications
Specifications
Compliant with Universal Serial Bus 3.0 Specification
Compatible with both standard (4:3) and widescreen (16:9 and 16:10) aspect ratios
Automatically detects the connected displays using VESA compliant protocols
Allows connecting up to 3 adapters and up to 6 monitors per system Chipset
Display Link DL-3900 Operating Power Consumption
2.5W Display Modes
Primary
Extended
Mirror Resolution
Standards (4:3 and 5:4): 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600, 640x480
Widescreen (16:9 and 16:10): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x800, 1280x768, 1280x720 Color
White Interfaces/Ports
1x 9-pin, Type B, USB 3.0, Female, Input
1x 29-Pin, DVI-I, Female, Output
1x 19-Pin, HDMI, Female, Output USB Cable
USB 3.0 Type A (Male) to Type B (Male)
Length: 3ft (0.9m)
Color: White Environmental Conditions
Operating temperature: 32 to 131 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 10% to 90% non-condensing Certification/Standards
FCC, CE, RoHS Country of Origin
Taiwan Requirements
Intel Core Due 2.0 GHz CPU with an available USB 2.0/3.0 port (USB 3.0 recommended)
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-bit)
Mac OS X 10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11 Package Contents

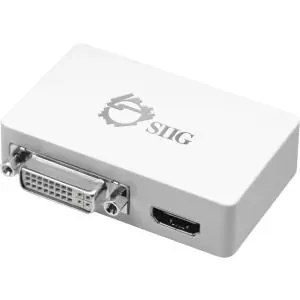

USB 3.0 to HDMI / DVI Dual Display Adapter
USB 3.0 Cable
Software CD
Installation Guide Item Dimension (L"xW"xH")
2 x 6 x 7
Weight
1.00 lb
Warranty Information
2 Years
