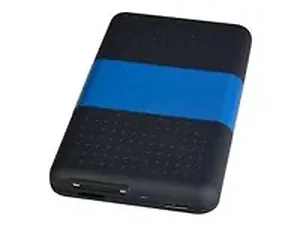

ADDS MORE STORAGE SPACE INCLUDING 2.5 HARD DRIVE AND SD OR MICRO-SD CARD VIA A S
Technical Specifications
Specifications Chipset: ASM1153E+GL 3224 Compliant with Universal Serial Bus 3.0 Specification Compliant with Serial ATA Specification 3.0 Supports USB 3.0 data transfer rates up to 5Gb/s (Note: For maximum data throughput, use a SATA 6Gb/s hard disk with the enclosure and connect to a USB 3.0 5Gbps port. Data throughput is dependent on system hardware and actual performance may be less.) Supports high performance UASP (USB Attached SCSI Protocol) (Note: USB 3.0 host driver needs to support UASP in order to take advantage of this feature. Currently, only Windows 10 and 8 native USB 3.0 host driver supports UASP.) Supports up to 4TB hard disk capacity (Note: Windows 2000, XP (32-bit), Server 2003 (32-bit) cant support more than 2TB capacity. This is an OS limitation.) Drive type SATA I/II/III Form factor: 2.5 inches Supports up to 2TB memory card capacity Memory card types SD/Micro-SD (SDHC/SDXC) Number 1 SD v1.0/ v1.1/ v2.0/ SDHC/ SDXC Number 2 SD v3.01 UHS-I (Ultra High Speed): SDR12/ SDR25/ SDR50/ DDR50/ SDR104 Power USB Bus-powered Housing material Plastic housing and Aluminum panel Color Black with blue Connectors USB 3.0 Micro-B (10-pin), Female, External SATA data and power connector (7+15 pin), Internal 1x SD card slot 1x Micro-SD slot Environmental conditions Operating temperature: 32 to 104 degrees F Storage temperature: 14 to 122 degrees F Relative humidity: 10% to 90% RH (non-condensing) Certifications/Standards: FCC, CE, RoHS Requirements Desktop or notebook computer with an available USB port (USB 3.0 port recommended) Windows 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) Windows Server 2003 2008 (32-/64-bit) / 2008 R2 / 2012 / 2012 R2 Mac OS X v10.6.x or later Package Contents USB 3.0 to SATA Hard Drive with SD Reader Enclosure - 2.5" (w/ protective silicon sleeve) USB 3.0 Type A to Micro-B cable User Reference Guide Item Dimension (L inchxW inchxH inch) 2 x 5 x 8
