Technical Specifications
Chipset: Renesas uPD720201/uPD720210
Compliant with USB 3.0 Specification
Compliant with PCI Express 2.0
USB data transfer rate: Up to 5Gbps
USB power output: Up to 900mA (per port)
Bus connector size: PCI Express 1x
Product
Color: Green
Connectors:
6x 9-pin USB 3.0 Type A, External, Female
1x 9-pin USB 3.0 Type A, Internal, Female
1x 15-pin SATA power connector
SATA power connection is required
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop PC with one available x1 PCI Express (PCIe) slot or larger
SATA power connection
Windows 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 (32-/64-bit)
Package Contents

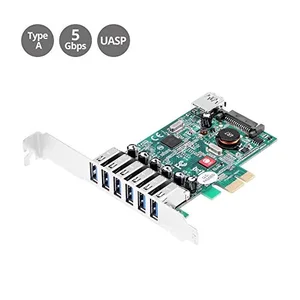

DP USB 3.0 7-Port PCIe i/e
Low profile bracket
Driver CD
Quick Start Guide
Item Dimension ( L inchxW inchxH inch)
5 x 5 x 1 Weight
1.0 lb Warranty Information
2 years
