JU-DK0F11-S1 - Siig TRUE 4K PERFORMANCE SINGLE 4K 30HZ, HDMI | Aztek Computers
29+Years
SKU: LW11TE254G |  Mfg. Part: JU-DK0F11-S1  | UPC: 662774042978  |
 3 Reviews  |     Share

JU-DK0F11-S1 - Siig TRUE 4K PERFORMANCE SINGLE 4K 30HZ, HDMI DISPLAYPORT OUTPUT DISPLAYPORT, 2X USB

17 Available
Condition: New

$89.46  $120.77
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Versatile and compact external docking station adds multiple connectivity ports to USB-C enabled computers and up to 100W PD charging of your laptop

Expert Overview

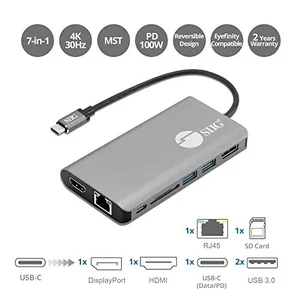

The Siig JU-DK0F11-S1 is an external docking station designed to expand connectivity for USB-C enabled computers. It provides multiple ports for data transfer, video output, network access, and memory card reading, while also supporting up to 100W Power Delivery (PD) for laptop charging. This device is suitable for IT professionals and business users who require a compact solution to connect peripherals and external displays to modern laptops lacking integrated ports. It addresses common challenges such as limited USB-C port functionality by consolidating various connections into a single unit. The dock supports single video output up to 4K at 30Hz via either DisplayPort or HDMI, or dual video output at 1080p at 60Hz. It integrates a Gigabit Ethernet port, two USB 3.0 ports for up to 5Gb/s data transfer, and an SD card reader. Compatibility extends to USB-C Alt-mode and Thunderbolt 3 technology, making it a versatile tool for various IT environments.

Technical Specifications

Chipset:
STDP4320+VL817+VL102+RTL8153B+GL823K Compatible with USB-C Alt-mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Power Delivery 3.0 specification: 20/12/5V at 5A/3A/2A/1.5A, up to 100W
USB data transfer rate: up to 5Gb/s
Compatible networks:
10/100/1000 Mbps Memory Card Types:
SDHC 2.0, SDXC 2.0 up to 40Mbps Memory Card Capacity:
SDHC up to 32GB, SDXC up to 2TB (max) USB Bus-powered
Supported video cable length:
HDMI: Up to 5 meters (max)
DisplayPort: Up to 3 meters (max)
Resolution:
Single video mode:
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
Dual video mode:
DP and HDMI: Up to 1080p at 60Hz (each display)
Product:
Color: Iron Gray with Black
Housing material: Aluminum housing
Connectors:
1x 24-pin, USB-C, Male, for PC connection
1x 24-pin, USB-C, Female, for PD 3.0 charging and USB 3.0 data transmission
2x 9-pin, USB 3.0, Female, output
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 8-pin, RJ-45, Gigabit Ethernet, Female
1x SD Card Reader, Female
Cable:
USB-C
Length:200+-10mm
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 1 x 3
Weight
1.00 LB
Warranty Information
2 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • JU-DK0F11-S1
  • B07T8C1KM3
  • 662774042978
  • New
  • 0.42 lbs
  • 7 X 1 X 6
  • Aug 13, 2026
  • Aug 23, 2019
  • Yes
  • CN
Product Identifiers: Brand: Siig • Part #: JU-DK0F11-S1 • UPC: 662774042978 • ASIN: B07T8C1KM3 • Category: USB Cables • TAA Compliant

Frequently Asked Questions

What video resolutions does this docking station support?

In single video mode, it supports up to 3840x2160 at 30Hz via DisplayPort or HDMI. In dual video mode, it supports up to 1080p at 60Hz for each display when using both DP and HDMI outputs simultaneously.

What types of memory cards are compatible with the integrated reader?

The docking station's memory card reader is compatible with SDHC 2.0 and SDXC 2.0 cards. It supports SDHC cards up to 32GB and SDXC cards up to 2TB.

Is this docking station compatible with Thunderbolt 3 laptops?

Yes, the docking station is compatible with both USB-C Alt-mode and Thunderbolt 3 technology, allowing it to function with a range of modern laptops.

What is the maximum power delivery capacity for laptop charging?

The docking station supports Power Delivery 3.0, providing up to 100W for laptop charging. It can deliver power at 20V/5A, 12V/3A, 5V/2A, or 5V/1.5A.
