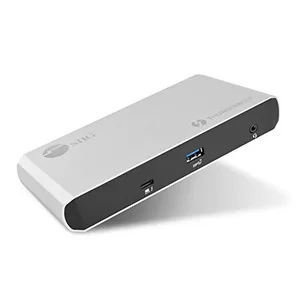

JU-DK0C11-S1 - Siig Thunderbolt 3 Dual DP 4K Video

Chipset: Intel Titan Ridge JHL7440
Compliant with Intel Thunderbolt 3 specifications
Integrated DisplayPort 1.2 interface for 4Kx2K at 60Hz
Integrated Gigabit Ethernet
Up to 1000 Mbps data transfer rate
Backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Power Delivery 3.0 (USB PD):
5V / 9V / 15V / 20V
Up to 60 watts
Provides one USB 3.1 Gen 2 Type-A with BC 1.2 charging and two USB 3.1 Gen 1 Type-A downstream port
Supports 5.1 channel surround sound from DisplayPort output
Combo 3.5mm audio jack for Stereo audio output / 2-ch Microphone input
Video cable length:
DisplayPort: Up to 3M (max)
Video resolution:
Thunderbolt 3 (source):
Single video:
up to 4K at 60Hz
5K at 60Hz (5120x3200), dual DisplayPort outputs connect to a single 5K DisplayPort display
Dual video: up to 4K at 60Hz
USB-C Alt Mode (source):
Single video: up to 4K at 30Hz (4096x2160)
Dual video: up to 1080p at 60Hz (1920x1080)
Product
Color: Iron Gray
Housing material: Aluminum + plastic
Connectors:
1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Input
2x 24-pin, USB 3.1 Gen 2 USB-C, Female (with 5V/1.5A charging)
1x 9-pin, USB 3.1 Gen 2 Type-A, Female (supports BC 1.2 charging)
2x 9-pin, USB 3.1 Gen 1 Type-A, Female
2x 20-pin, DisplayPort, Female, Output
1x 8-pin, RJ45, Gigabit Network, Female, Output
1x 3.5mm, Audio/Headset jack
1x DC power jack
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 20V/6.75A
UL Listed: E132068 / Class VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
7 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years
