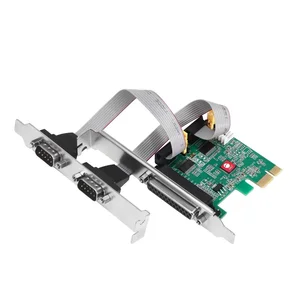

JJ-E20411-S1 - Siig RS-232/422/485 SERIAL 16C650 UART SERIAL PORT WITH DATA TRANSFER RATE UP TO 250K

Chipset:
ASIX AX99100
Compliant with PCI Express Base Specification 2.0
Compliant with PCIe Bus Power Management Interface Revision 1.2
Data transfer rate:
Serial port: Up to 250Kbps
Parallel port: Up to 1.5Mbps
Flow control:
Hardware and software
Serial format:
5, 6, 7, 8 and 9-bit
Parity:
Even, Odd, None, Space, and Mark On chip 256 Byte FIFO buffer (Transmit, Receive)
Serial power output: 0V / 5V / 12V, configured by jumper
Note: Y-Split power cable connection is required for 5V and 12V output.
Power consumption:
3W
System chassis form factor:
Full height and Low-profile Product:
Color: Green
2x, 9-pin RS-232 Serial, Male
1x, 25-pin Parallel, Female
1x, 4-pin, Molex mini power connector
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
3 x 5 x 1
Weight
1.00 LB
Warranty Information
2 years
