General Information
Manufacturer:StarTech.com
Manufacturer Part Number:JD094BST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

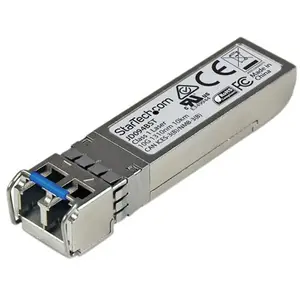

Product Name:HP JD094B Compatible SFP+ Transceiver Module - 10GBASE-LR
Marketing Information:The JD094BST is an HP JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications: - Wavelength: 1310 nm
- Maximum Data Transfer Rate: 11.1 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Packaged Quantity:1
Product Type:SFP+
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 10GBase-LR Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-LR
Physical Characteristics
Form Factor:
- Hot-pluggable
- Hot-swappable
Height:0.5"
Width:0.5"
Depth:2.3"
Weight (Approximate):0.04 lb
Miscellaneous
Compatibility:
HPE Switches: - 5900
- 12500
- 5500
- 5820
- 5120
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Warranty
Limited Warranty:Lifetime
