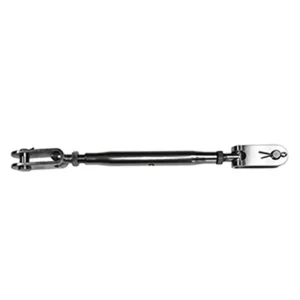

06-110 - C. Sherman Johnson Jaw Tubular Turnbuckle T-Style 3/8-24 Thread

Jaw/Jaw Tubular Turnbuckle T-Style 3/8-24 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

• Jaw with "T" Toggle Construction
• Machine swage
• Bronze body/ 316 stainless ends
• Wire size: 1/4"
• Breaking strength: 7,000 pounds
• Safe working load: 2,800 pounds
• Thread size: 3/8-24
• Pin to pin length: 9-1/2" (closed) 13-3/4" (open)
• Body length: 5-5/8"
• Pin diameter: 3/8"
• Weight: 14 ounces

The C. Sherman Johnson Jaw/Jaw Tubular Turnbuckle (part number 06-110) is designed for applications requiring a traditional body turnbuckle with robust construction. This component features a forged silicon bronze body and 316 stainless steel ends, engineered to minimize galling. Its integral toggle jaw design aims to simplify rigging by eliminating the need for a separate rigging toggle, while also providing positive locking and adjustment capabilities. With a 3/8-24 thread size and a 3/8-inch pin diameter, it is suitable for 1/4-inch wire. This turnbuckle offers a breaking strength of 7,000 pounds and a safe working load of 2,800 pounds. It addresses the need for reliable tensioning and adjustment in systems where a durable, non-galling connection is critical.
