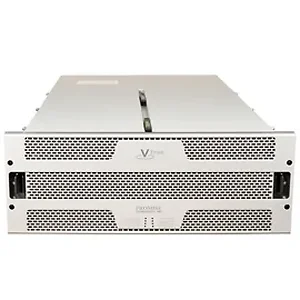

Promise Technology J930SDQS6 Promise J930SDQS6 4U 60-Bay SAS JBOD Expansion with HDDs

Out of Stock
Condition: New

$104,408.14  $140,950.99

Product Overview

The Promise J930SDQS6 is a high-performance 4U 60-bay SAS JBOD expansion system that supports a wide range of HDD and SSD configurations. Designed for maximum storage capacity and efficiency, it allows businesses to scale their storage solutions seamlessly and securely.

With up to 60 3.5" or 2.5" drives, this JBOD unit is perfect for demanding environments requiring fast access to large volumes of data. The inclusion of redundant power supplies enhances reliability, while comprehensive management protocols simplify monitoring and maintenance.

Technical Specifications

  • Form Factor: Ultra-dense 4U 60-bay
  • Drive Support: Up to 60 3.5"/2.5" HDDs or SSDs
  • Data Transfer Rates: NL-SAS 7200 RPM: 6Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
  • External I/O Ports (per controller): Four 6G SAS ports using Mini SAS 4x wideport-SAS connectors (SFF-8088)
  • I/O Module Features: ANSI T10 SAS 2.0 Compliant, self-configuring expander, in-band management, and redundant cable support
  • Voltage: 90/264V, 47-63Hz auto-ranging
  • Current (Maximum): 14.5A RMS at 110VAC
  • Temperature Range: Operational: 10°C to 35°C, Non-Operational: -40°C to 70°C
  • Humidity: Operational: 10% to 80% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
  • Shock: Operational: 5G, Non-Operational: 10G
  • Vibration: Operational: 0.15G, Non-Operational: 0.5G
  • Safety: IEC/EN/UL/CSA 60950-1 compliant
  • Environment Standards: RoHS, WEEE Compliant
  • Power Supply: Redundant 1200W hot-plug auto-switching
  • Mounting Options: Rack-mounting rail kit included, optional extension kit available
  • Support: 24 x 7 web and phone support, including firmware updates and knowledge base
  • Dimensions: 42 x 24 x 14 inches
  • Weight: 245.00 lb
  • Warranty: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • J930SDQS6
  • 704118105373
  • New
  • 245 lbs
  • 42 X 14 X 24
  • Feb 19, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Promise Technology • Part #: J930SDQS6 • UPC: 704118105373
