Technical Specifications
SWCH 2610-24 10/100 24PT MGD 2GIG 2SFP L2

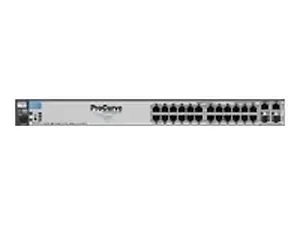

The HP E2610-24 switch is a managed 28-port switch with 24 auto-sensing 10/100 ports and 2 10/100/1000BASE-T and 2 mini-GBIC ports. The HP E2610-24 is fanless switch with quiet operation, making it ideal for deployment in open spaces.
*
MAIN SPECIFICATIONS
Product Description HP E2610-24 Switch - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - managed - stackable
Enclosure Type Rack-mountable
Ports 24 x 10/100 + 2 x SFP + 2 x 10/100/1000
MAC Address Table Size 8K entries
Routing Protocol IGMPv3
Remote Management Protocol RMON 2, Telnet, HTTP, SSH, SSH-2
Features Flow control, auto-sensing per device, auto-negotiation, BOOTP support, trunking, VLAN support, manageable, stackable, SNTP support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE♊.1x
Power AC 120/230 V ( 50/60 Hz )
Localization English / United States
General
Device Type Switch - 24 ports - managed - stackable
Enclosure Type Rack-mountable
Ports 24 x 10/100 + 2 x SFP + 2 x 10/100/1000
MAC Address Table Size 8K entries
Routing Protocol IGMPv3
Remote Management Protocol RMON 2, Telnet, HTTP, SSH, SSH-2
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, auto-sensing per device, auto-negotiation, BOOTP support, trunking, VLAN support, manageable, stackable, SNTP support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE♊.1x
Processor 1 : 300 MHz
RAM 128 MB - SDRAM
Flash Memory 16 MB flash
Expansion / Connectivity
InterfacesΜ x 10Base-T/100Base-TX - RJ-45 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x RJ-45 - management 2 x SFP (mini-GBIC)
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 41 Watt
Miscellaneous
Compliant Standards FCC Class A certified, CSA, CISPR 22 Class A, CISPR 24, cUL, EN, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC950, NOM, UL 1950, VCCI Class A ITE, EN 61000-3-3, EN55024
Localization English / United States
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 15 - 95%
