IW-RF100S-S265 - Inwin In-Win Rackmount IW-RF100S-S265 1U | Aztek Computers
29+Years
SKU: FTI4THCYX4 |  Mfg. Part: IW-RF100S-S265  | UPC: 827955020927  |
 1 Reviews  |     Share

IW-RF100S-S265 - Inwin In-Win Rackmount IW-RF100S-S265 1U Appliance 265Watts Power Supply 0/(2x2.5)

9 Available
Condition: New

$187.28  $252.83
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

rCompact size for Mini-ITX motherboard rReversible design allowing the M/B ports to be presented at the front or rear of the chassis rRack ears can be fitted to both front and rear of the chassis rPower supply can be swapped with the front panel location rTool-free 3.5" & 2.5" HDD cage design rSupports up to 40mm PWM x 3 with anti-vibration

Expert Overview

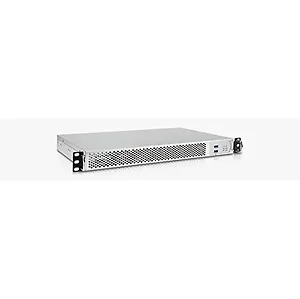

The In-Win Rackmount IW-RF100S-S265 is a 1U appliance chassis designed for Mini-ITX motherboards. Its compact form factor is suitable for environments requiring efficient use of rack space. A key feature is its reversible design, which allows for the motherboard's I/O ports to be oriented at either the front or rear of the chassis, depending on specific deployment needs. The included 265-watt Flex ATX power supply can also be repositioned with the front panel for flexible configuration. This chassis supports internal storage with two 2.5" HDD bays and two 3.5" HDD bays, with an option to expand to four 2.5" HDDs. It includes tool-free drive cages for simplified installation and maintenance. Cooling is managed by supporting up to three 40mm PWM fans, two of which are 40x28mm. The IW-RF100S-S265 is designed for IT professionals and businesses building compact servers, network appliances, or other specialized systems where space and configurable I/O are critical.

Technical Specifications

Standard
EIA-RS310D M/B Form Factor
MINI ITX (6.7" x 6.7") Drive Bay
Internal: 2.5" HDD x 2
3.5" HDD x 2 (Optional 2.5" HDD x 4) Power Supply
Supports
Form Factor: Flex
Watt: up to 265W or 315W Indicator
Power Status, HDD, LAN Activity LEDs Front Control Panel
Power Switch, System Reset, USB 3.0 x 2 Cooling Fan
Supports 40 x 28 mm PWM Fan x 2 (Max up to 3) Material
Material: SGCC
Thickness: 1.0 mm Rail Kit
Supports 20" Friction slide rail Item Dimension (L"xW"xH")
23 x 16 x 6

Weight
14 lb

Warranty Information
3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • INWIN
  • IW-RF100S-S265
  • B075FPS6ZL
  • 827955020927
  • New
  • 8.95 lbs
  • 22 X 6 X 15
  • Aug 12, 2026
  • Jun 22, 2017
Product Identifiers: Brand: Inwin • Part #: IW-RF100S-S265 • UPC: 827955020927 • ASIN: B075FPS6ZL • Category: Computer Cases

Frequently Asked Questions

What motherboard form factors are compatible with this chassis?

This chassis is designed to support Mini-ITX motherboards, with dimensions up to 6.7" x 6.7".

What type of power supply is included or supported?

The chassis includes a 265-watt Flex ATX power supply. It supports Flex ATX power supplies up to 315 watts.

What storage drive configurations are supported?

The chassis supports two internal 2.5" HDDs and two 3.5" HDDs. Optionally, it can support four 2.5" HDDs instead of the 3.5" drives.

Can the chassis be configured for front or rear I/O access?

Yes, the chassis features a reversible design that allows the motherboard's I/O ports to be presented at either the front or rear of the chassis.
