Technical Specifications

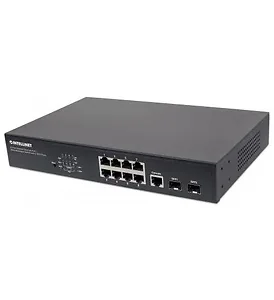

- The Intellinet 8-Port Gigabit Ethernet PoE+ Web-Managed Switch (561051) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables.- Equipped with eight Gigabit Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps- Provides power and data connection for up to eight PoE network devices- Save time and money by delivering data and power via existing network cables- For use on desktop or mounted in standard 19" rack- 10/100/1000 auto-sensing ports automatically detect optimal network speeds- Two small form-factor pluggable GBIC module slots (SFP)- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports- Power output up to 30 watts per port*- PoE power budget of 140 watts- 20 Gbps switch fabric- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection- All RJ45 ports with Auto-MDIX (auto uplink) support- Web-based configuration- Supports SNMP management- SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9- Supports VLAN (tag-based and port-based)- Supports link aggregation (trunking)- Supports port mirroring- Supports three types of QoS: CoS (802.1p), DSCP and IP precedence- Broadcast storm control with multicast packet rate settings- Store and forward switching architecture- Supports jumbo frames up to 9 kBytes- Supports Rapid Spanning Tree/Spanning Tree protocol- IEEE 802.3x flow control for full duplex- Supports 8k MAC address entries- 512 kBytes buffer memory- Desktop-size metal case- Fanless design ideal for silent operation- Includes 19" rackmount brackets- Three-Year Warranty
