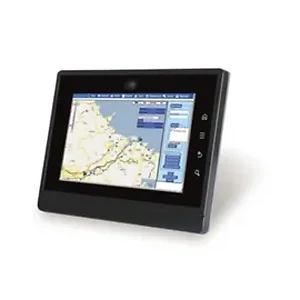

IKARPC-07A-BT-E3/2G-R10 - Iei Technology IEI System IKARPC-07A-BT-E3/2G-R10 7 inch Atom E3826 2GB DDR3L Vehicle Panel PC

Form factor
SBC Form Factor
CPU: Intel Atom^TM processor E3826 (dual-core, 1.46 GHz, 7W)
Chipset: SoC
System Memory:On-board 2 GB SDRAM System
Cooling method / System Fan: Fanless Indicator and Buttons
Indicators: Power/HDD/Wi-Fi/3G I/O Ports
20-pin Connector:
1 x GbE LAN
1 x OBD-II/CAN bus
1 x USB 2.0
24-pin Connector:
1 x Audio line-out (R+L)
1 x Audio line-in
1 x RS-232
4-bit digital I/O (2-bit input, 2-bit output)
1 x USB 2.0
1 x USB3.0
1 x HDMI
2 x SIM slot Environment
Operating Temperature -20^oC to 60^oC with air flow
Humidity 5% to 95%, non-condensing Color
Black C + Silver Expansion Slots
1 x Full-size PCIe Mini (reserved for mSATA module),
1 x Full-size PCIe Mini (reserved for 3G module),
1 x Half-size PCIe Mini (reserved for Wi-Fi module) Package contents
1 x ACC power cable
1 x GPS/GSM antenna
1 x Utility CD Item Dimension (L inchxW inchxH inch)
9 x 7 x 2

Weight
2.20lb

Warranty Information
2 Years
