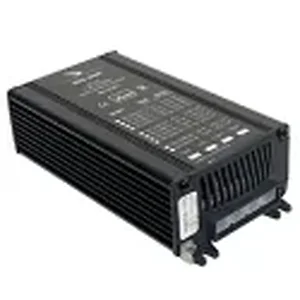

IDC-200A-12 - Samlex America 200W Isolated DC Converter - 16A - 9-18V Input - 12V Output

200W Isolated DC-DC Converter - 16A - 9-18V Input - 12V Output

The IDC-200 series includes high-efficiency, fully isolated DC-DC converters ideal for applications needing electrical isolation between input and output. The IDC-200A-12 model delivers a precisely regulated output of 12.5 Volts with an input range of 9-18 Volts and supports a maximum output current of 16 Amps (at 18 Volts input). Key features comprise a compact design, fold-back current limiting, and protection against short circuits, overheating, overvoltage, and reverse polarity. It comes equipped with 1/4� push-on flat blade �quick disconnect� connectors. This converter is EMI/EMC compliant and adheres to European standards EN50081-1 (EMI), EN50082-1 (EMC), and the European Automotive Directive 95/54/CE.

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
