Product Overview

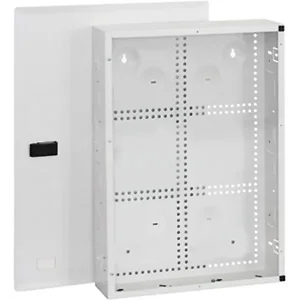

21in. Net.Media Center provides more room to serve as the central distribution point for voice data video audio and security services. The 14.25in. W x 21in. H x 3.65in. D center features up to 12 mounting spaces designed for medium installations: 1 AC knockout for power 3 top 2 bottom 2 per side and 4 back 2in. diameter cable access knockouts and 16 cable tie anchor points. Great for medium installations in multi-family homes with small home offices (ROHS)
Technical Specifications
- 21 Residential Structured Cabling Enclosure
- Designed with steel construction, white powder coated, lightweight and sturdy
- Designed to serve as the central distribution point for voice, data, video, audio, and security services for smaller residential structured wiring systems
- Allows for internal modules to be mounted horizontally or vertically facilitating easier layout and wiring of the system, while providing for optimum cable management
- Integrated snap-in module system enables users to quickly insert or move the internal modules
- Supports up to 6 ICCMSCMPR1 or ICCMSCMPR2 Cable Management Rings for organizing and routing cables
- Includes 4 top, 3 bottom, 4 rear, and 2 side knockouts for routing cables and 4 cable tie points
- Includes a knockout for an optional AC power outlet (not included) to provide power distribution
- Fits between 16 wall studs
- Designed with a door latch and an optional door lock knockout
- Hinged door and NET MEDIA CENTER insert are reversible for opening from left or right
- Accommodates all of ICRESXXXXX residential modules
- Used with optional accessories including ICRDSDCAC2 distribution center rubber grommets, ICRESDCAC3 distribution center plastic grommets, and ICRDSDC2LK distribution center door lock
- Flush mounted door overlaps " to conceal any uneven drywall cuts around the enclosure
- UL Rated
