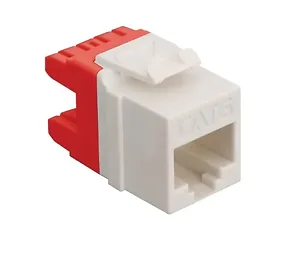

ICC-IC1078F6WH - Cablesys Module, Cat 6, Hd, White

74 Available
Condition: New

$22.26  $30.05
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The ICC CAT 6-HD Category 6 high density modular connector has been introduced to satisfy needs for jacks where small overall size of the module is essential. The ICC CAT 6-HD delivers the same supererior performance of the ICC CAT 6-EZ modular jack and features a smaller footprint. The CAT 6-HD modular jack is avaulable in 11 colors fits all ICC faceplates inserts and bezels. The CAT 6-HD modular jack exceeds CAT 6 Channel and permanent link requirements specified in TIS/EIA 568-B.2-1 when used with many CAT 6 horizontal cables. Key Features Include Exceeds CAT 6 channel and permanent link requirements 110 IDC termination with sequential pair isolation small footprint for use in high connector density applications TIA/EIA wiring diagram for 568A and 568B on connector body Gold plated contacts for superior and performance and reliability Dual retaining caps Backward compatibility with the ICC CAT 5e modular connectors and products

Expert Overview

The Cablesys ICC-IC1078F6WH is a Category 6 high-density modular connector designed for data network applications requiring high speed and bandwidth. This white keystone jack offers a reduced rear footprint, enabling greater connectivity density and more port configurations within compact spaces. It utilizes PCB technology for signal quality and features enhanced crosstalk cancellation to mitigate noise and unwanted signals, exceeding ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements. The module includes in-line 110 IDC, in-sequence termination with a one-piece termination cap and an integrated TIA-568A/B color wiring diagram to streamline installation. Gold-plated contacts contribute to performance and reliability. This connector is suitable for IT environments where optimizing space while maintaining Cat 6 performance is critical, and it is backward compatible with lower-rated category components.

Technical Specifications

- White IC1078F6WH ICC HD Cat 6 Keystone Jack
- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
- Designed with in-line 110 IDC, in-sequence termination reducing termination time
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
- Installation instructions included
- UL listed

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Cablesys
  • ICC-IC1078F6WH
  • 633758017336
  • New
  • 1 lbs
  • 1 X 1 X 1
  • Aug 31, 2026
  • Dec 03, 2021
Product Identifiers: Brand: Cablesys • Part #: ICC-IC1078F6WH • UPC: 633758017336 • Category: Plugs, Jacks & Wall Plates

Frequently Asked Questions

What are the key features for installation?

The connector is designed with in-line 110 IDC for in-sequence termination, which helps reduce installation time. It includes a one-piece termination cap for quick and easy termination, along with an integrated TIA-568A/B color wiring diagram.

Is this Cat 6 module compatible with other category components?

Yes, the ICC-IC1078F6WH is backward compatible with all lower-rated category components. It also fits all ICC faceplates, inserts, and bezels.

What problem does the 'reduced rear footprint' solve?

The reduced rear footprint allows for greater connectivity density. This provides more port configurations in a smaller area, which is beneficial for high-density applications where space optimization is essential.

What performance standards does this module meet?

This Cat 6 rated module exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements. It also exceeds Cat 6 Channel and permanent link requirements when used with compatible Cat 6 horizontal cables.
