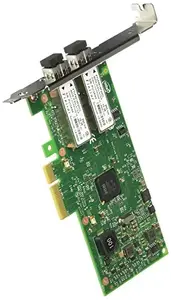

I350F2 - Intel Network I350F2 Dual Port (2 LC) PCI Express Fiber 1GB Server Retail

Plug and play specification support:
Standard

Intel I/O Acceleration Technology (Intel I/OAT):
Extreme system throughput

Both full-height bracket and low-profile bracket shipped:
Streamlines installation Connector:
LC Fiber Optic

Cable Medium:
Fiber

Cabling Type:
Fiber MMF 62.5/50um up to 550m

Controller-processor:
- Intel Ethernet Controller I350 IEEE Standard/Network Topology:
- EEE 802.3Z, 1000BASE-SX

Port:
- 2x LC, Fiber

Data rate supported per port:
- 1000 Mbps (Fiber)

Bus type:
- PCI Express 2.1 (5GT/s) Bus width:
- 4-lane PCI Express operable in x4, x8 and x16 slots.

Interrupt levels:
- INTA, INTB, INTC, INTD, MSI, MSI-X.

Power consumption (typical):
- Fiber 5.5W

Connect Speed LED Indicators:
- Green equal 1 Gb/s, No illuminated equal no link. Hardware certifications:
- FCC B, UL, CE, VCCI, BSMI, CTICK, KCC.

Ethernet Features
IEEE 802.3 auto-negotiation:
- Automatic link configuration for speed, duplex, flow control

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant:
- Robust operation over installed base of Category-5 twisted-pair cabling Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex:
- Smaller footprint and lower power dissipation compared to multiple discreet MAC and PHY

IEEE 802.3x/802.3z compliant flow control support with Rx thresholds and Tx pause frames:
- Local control of network congestion levels
- Frame loss reduced from receive overruns Automatic cross-over detection function (MDI/MDI-X):
- The PHY automatically detects which application is being used and configures itself accordingly

IEEE 1588 protocol and 802.1AS implementation:
- Time-stamping and synchronization of time sensitive applications
- Distribute common time to media devices Item Dimension (L"xW"xH"):
8.74 x 5.71 x 1.18

Weight:
0.35 lb

Warranty Information:
Limited Lifetime
