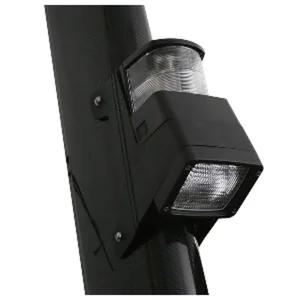

998504001 - Hella Marine Halogen 8504 Series Masthead/Floodlight Lamp - Black

Halogen 8504 Series Masthead/Floodlight Lamp - Black

Deck Floodlight and Masthead Lamp combined in one robust housing.
Suitable for vessels less than 20m in length.

Features:

• 3 Nautical Mile Masthead lamp
• Hella 'Free Form' reflector technology
• Flexible mounting arms for mounting on a variety of mast profiles
• Illuminates large areas of deck or superstructure
• Glass lens bonded with reflector to be dust and moisture resistant
• Covered bulbs for moisture protection
• All metal parts are stainless steel

Specifications:

• Housing Description: UV and impact resistant plastic housing
• Bulb: 12V / 10W BAY15d and 12V / 55W H3 bulbs included
• Mounting: Navigation lamp and Deck Floodlight require separate wiring Housing arms flex to fit around mast pro
• Degree of Protection: IP X4
• Maximum Output: Deck lamp 12V / 55W or 24V / 70W, Note - Not suitable for 100W bulbs
• Approvals: BSH, IMO COLREG, USCG, RINA, ABYC A-16, NMSC, Maritime NZ

The Hella Marine Halogen 8504 Series Masthead/Floodlight Lamp, part number 998504001, is a combined lighting unit designed for marine applications. This black, robust housing integrates both a 3 Nautical Mile masthead lamp and a deck floodlight, making it suitable for vessels under 20 meters in length. It addresses the need for dual-purpose lighting from a single fixture, reducing installation complexity. The unit features Hella 'Free Form' reflector technology and flexible mounting arms to accommodate various mast profiles. Its construction includes a glass lens bonded with the reflector for dust and moisture resistance, covered bulbs for additional moisture protection, and stainless steel metal components. The housing is made from UV and impact-resistant plastic. This lamp provides essential navigation lighting while also illuminating large areas of the deck or superstructure, offering practical utility for maritime operations.
