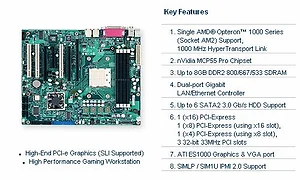

Supermicro H8SMI-2-O Opteron Server Motherboard with SLI

Out of Stock
Condition: New

$114.60  $154.71
 Free Shipping for this Item

Product Overview

The Supermicro H8SMi-2-O is a high-performance server motherboard designed for AMD Opteron 1000 series processors. It offers a robust platform with dual-channel DDR2 memory support and advanced RAID configurations, making it ideal for various server applications.

This motherboard features a compact ATX form factor and is equipped with multiple expansion slots for versatile connectivity options, including support for NVIDIA SLI technology for enhanced graphics capabilities.

Technical Specifications

Specifications
  • CPU: Socket AM2 Support for AMD Dual-Core Opteron 1000 Series Processor; FSB 1000MHz HT Speed
  • Chipset: nVidia MCP55 Pro
  • Memory: Supports 4x 240pin DDR2-800/667/533 DIMMs, Dual Channel, Un-buffered ECC/Non-ECC, Max Capacity 8GB
  • Expansion Slots: 2x PCI-Express x16 (One with x8 speed), 1x PCI-Express x8 (Runs on x4), 3x 32-bit 33MHz PCI Slots
  • Storage: 1x ATA-133 Channel, 6x SATA2 Ports with RAID support (0, 1, 0+1, 5, JBOD)
  • Video: Integrated ATI ES1000 Graphics Controller
  • Networking: Dual-Port Gigabit Ethernet Controller via nVidia MCP55 Pro Chipset
  • I/O Ports: 6x USB 2.0 (2 rear, 4 via headers), 2x PS/2, 2x Serial, 1x Parallel, 1x VGA, 2x RJ45
  • Power: 1x 24-pin Main Power Connector, 1x 4-pin CPU Power Connector
  • Form Factor: ATX, Dimensions 12 x 9.6 inches (30.5 x 24.4 cm)
  • Compliance: RoHS Compliant
  • Power Requirement: Minimum 300W ATX power supply recommended for system stability

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • H8SMI-2-O
  • B000PLORQM
  • 672042011209
  • New
  • 7 lbs
  • 14 X 5 X 17
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Supermicro • Part #: H8SMI-2-O • UPC: 672042011209 • ASIN: B000PLORQM
