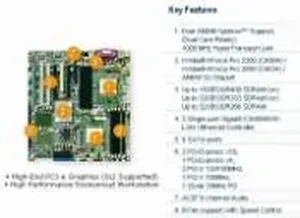

Supermicro H8DCI-B H8DCi B Dual Socket Opteron Server Motherboard

Out of Stock / 1 Sold
Condition: New

$434.19  $586.16
 Free Shipping for this Item

Product Overview

The Supermicro H8DCi B motherboard is designed for optimal performance with dual 940-pin ZIF sockets that support Dual-Core AMD Opteron 200 Series processors. With an advanced chipset featuring nVidia nForce Pro technology and extensive memory support, this motherboard delivers reliability and scalability suitable for demanding server environments.

Equipped with multiple expansion slots and integrated LAN capabilities, the H8DCi B ensures high-speed connectivity and flexible configuration options, making it a solid choice for enterprise-level applications.

Technical Specifications

Specifications
  • CPU: Dual 940-pin ZIF Sockets Supports Dual-Core AMD Opteron 200 Series processors
  • Chipset: nVidia nForce Pro 2200 (CK804) & nVidia nForce Pro 2050 (CKIO4) & AMD 8132 PCI-X Tunnel
  • Memory: 8x 184-pin DIMMs, 2.5V only, ECC/REG, Single or Dual Channel, Up to 16GB DDR-400 or 32GB DDR-333/266 memory
  • Slots: 2x PCI-E x16 slots (nVidia SLI Technology Supported); 1x PCI-E x4 (using x8) slot; 2x 64-bit PCI-X 133/100MHz slots; 1x 64-bit PCI-X 100MHz slot; 1x 32-bit PCI slot
  • IDE/SATA: 2x ATA 133/100 EIDE channels; 4x SATA2, RAID 0, 1, 10 & JBOD support
  • Audio: AC97 (ALC650) audio CODEC with high quality 6-channel sound
  • LAN: nVidia nForce Pro 2200(CKIO4) & 2050(IO4) Dual Single-Port GbE Controllers
  • Ports: Max. 8x USB 2.0/1.1 (4x rear ports + 4x internal headers); 2x RJ45 LAN ports; 1x Line In/Line Out/Microphone port; 2x PS/2; 2x Fast UART 16550 serial ports; 1x ECP/EPP parallel port
  • Form Factor: Extended ATX, 12 x 13.05 inch / 30.5 x 33.2 cm
  • Package: Bulk
  • Power Requirements: A 645W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] for system stability

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • H8DCI-B
  • 672042884650
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Supermicro • Part #: H8DCI-B • UPC: 672042884650 • Category: Motherboards

Supermicro H8DCI-B H8DCi B Dual Socket Opteron Server Motherboard
